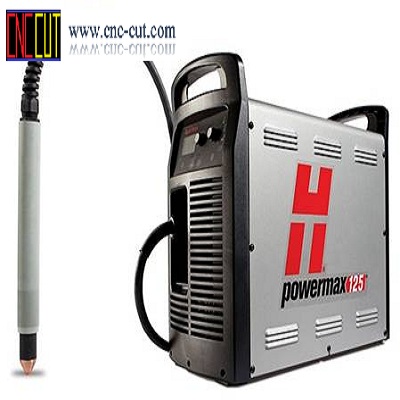

Hypertherm plasma generator
Hypertherm plasma generator, USA made High performance plasma generators, with excellent quality. Using Long life and fine cutting Technology can significantly extend the life of parts and improve cut
USA made High performance plasma generator, with excellent quality. Using Long life and fine cutting Technology can significantly extend the life of parts and improve cutting result.
|
Model |
PMX45 |
PMX85 |
PMX105 |
PMX125 |
MAXPRO200 |
|
Rated Input Capacity (KVA) |
5.95 |
12.2 |
16.8 |
21.9 |
33 |
|
Rated Output Voltage (VDC) |
132 |
143 |
160 |
175 |
50-165 |
|
Current Range (A) |
20-45 |
25-85 |
30-105 |
30-125 |
40-200 |
|
Current Range (%) |
50-100 |
60-100 |
80-100 |
100 |
100 |
|
Max Cutting Thickness (mm) |
25 |
38 |
50 |
57 |
75 |
|
Piercing Thickness (mm) |
12 |
20 |
22 |
25 |
32 |
|
Plasma Gas |
Air/N2 |
Air/N2 |
Air/N2 |
Air/N2 |
Air/N2/O2 |
|
Torch Cooling Method |
Air |
Air |
Air |
Air |
Water |
|
Machine Size(L*W.*H) (mm) |
426*172*348 |
500*234*455 |
671*427*655 |
592*274*508 |
1020*690*1050 |
|
Net Weight (Kg) |
17 |
32 |
45 |
45.2 |
335 |
