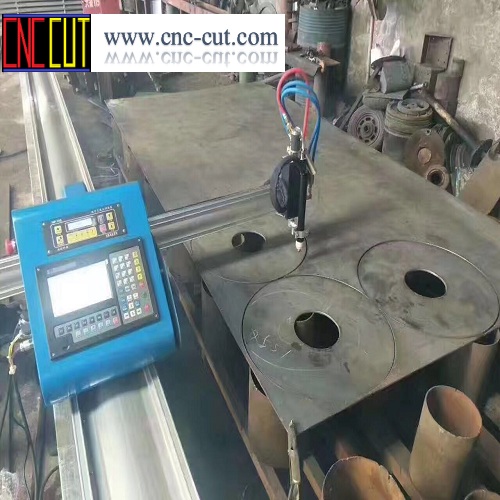

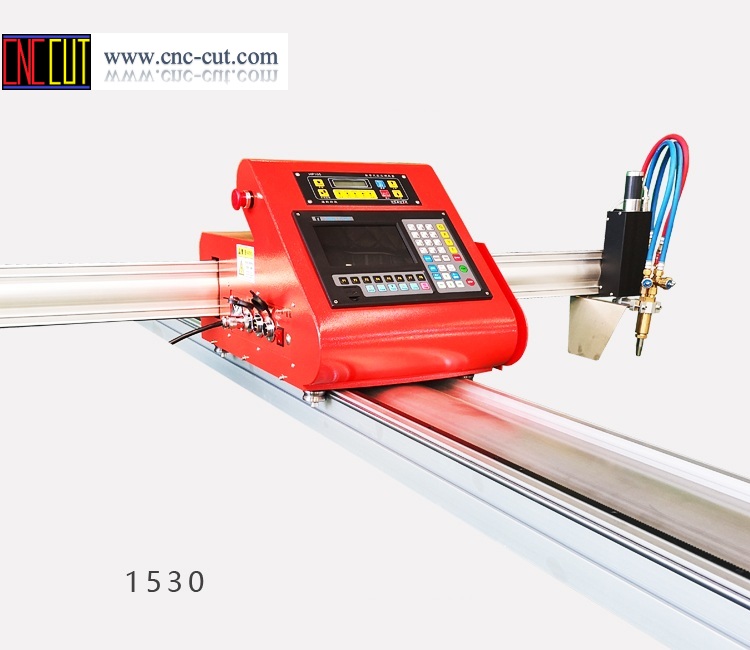

Portable CNC Flame Cutting Machine
Portable CNC Flame Cutting Machine Portable CNC Flame Cutting MachinePortable CNC Flame Cutting MachinePortable CNC Flame Cutting Machine

Portable CNC Flame Cutting Machine

CCL-P

CCL-P with portable structure, light and smart, no fixed place occupation, sustain table or on sheet cutting directly; CNC flame cutting or CNC plasma cutting both; with reasonable cutting area: effec

Portable CNC cutter
CNC flame cutter
Portable CNC Flame Cutting Machine    Portable CNC Flame Cutting Machine

*Overall compact miniature structure

*Operation is small, nimble, stable

*Good replacement of hand held flame cutting equipment, hand-held plasma cutting device.



Parameter:

Item

Unit

Parameter

1

Beam span

mm

2200/2600

2

Rail length

mm

3000/3500(Customized available)

3

Effective cutting span

mm

1600/2000

4

Effective cutting length

mm

2500/3000

5

THC lifting travel

mm

105

6

Cutting Speed

mm/min

0-6000

7

Empty moving speed

mm/min

0-8000

8

Repeat position precision

mm

±0.2

9

Flame cutting thickness

mm

6-85

10

Plasma cutting thickness

mm

0.1-25

11

Flame cutting speed

mm/min

50-900

12

Plasma cutting speed

mm/min

100-6000

Advantages compared with other suppliers:

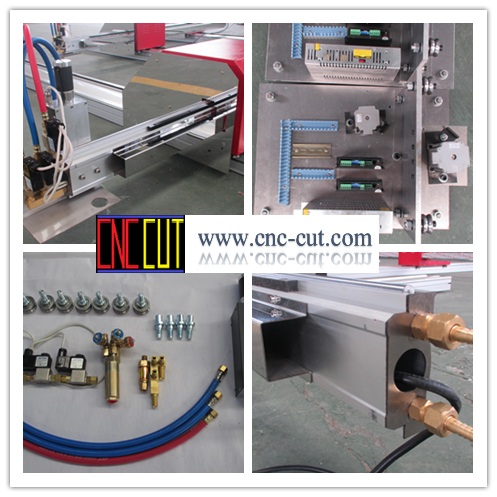

  1. Structure Made of 6061 hard aluminum alloy, good balance performance, light weight, small running inertia, strong stability, and good shape.
  2. CNC Support Base Made of 10mm hard aluminum alloy plate, self-light, good durability.
  3. Taiwan AIRTAC solenoid valve, bear long time 1.4Mp high pressure situation, stable work, efficient, durable.

  4. Drive mode Driven by 57# precision stepping motor, stable and fast running speed.
  5. Gear/rack All high-precision gears and racks (accuracy grade 7), stable at high speed, and each rack uses surface treatment, is not easy to deform.

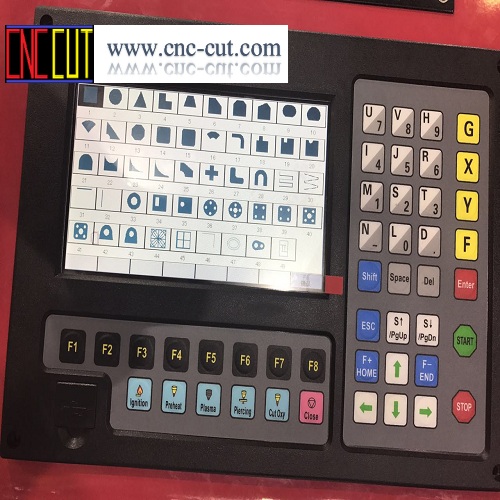

  6. CNC control system F-2100B numerical control system, the operation interface is simple, easy to learn, and not easy to crash.
  7. Transmission bearing adopts Φ39mm high-precision anti-rust bearing shaft, each bearing can bear 200KG weight.
  8. Automatic nesting software with automatic co-edge; automatic bridging, etc.
  9. Overall packaging Customized lock-type packaging according to exporting requirements, increase crashworthiness when transporting equipment, convenient packaging, beautiful appearance.
