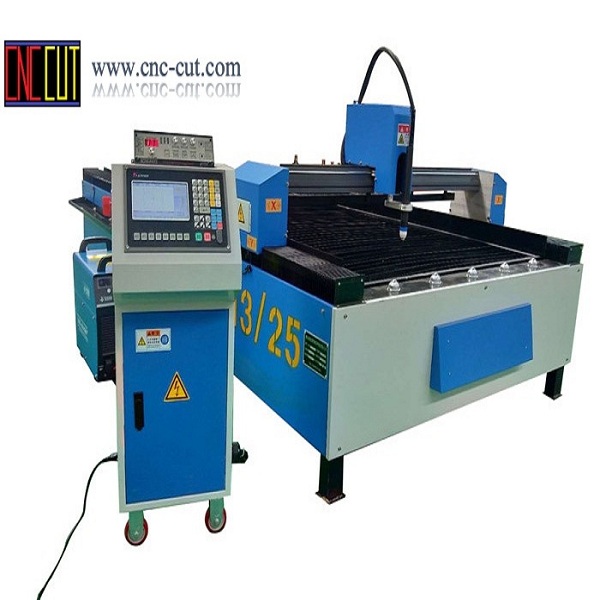

Table CNC Plasma Cutting Machine
Table CNC Plasma Cutting Machine Table CNC Plasma Cutting MachineTable CNC Plasma Cutting Machine

Table CNC Plasma Cutting Machine

CCL-BL

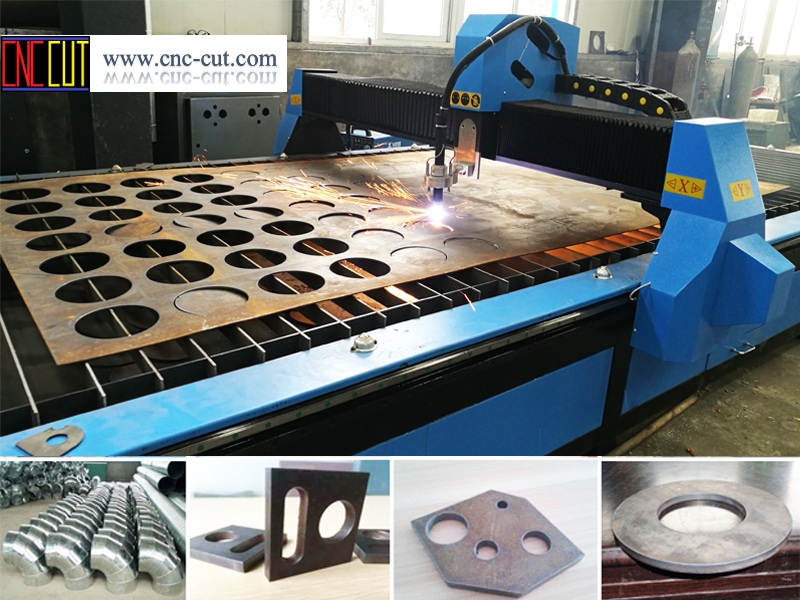

Table CNC Plasma Cutting Machine CCL-BL is the most complete cnc plasma cutting machine, specially suitable for thin metal sheet cutting; to be with top NC plasma generator, the cutting result similar

Plasma Cutting Table
CNC Plasma Table
Table CNC Plasma Cutting Machine    Table CNC Plasma Cutting Machine


Parameter:


Item

Unit

Parameter

1

Width

mm

1800(Customized available)

2

length

mm

3500(Customized available)

3

Effective cutting width

mm

1500

4

Effective cutting length

mm

3000

6

THC travel distance

mm

120

7

Cutting Speed

mm/min

0-7000

8

Empty moving speed

mm/min

0-12000

9

Plasma cutting thickness

mm

0.1-75mm Mild steel, stainless steel, Aluminium, copper etc

Advantage:

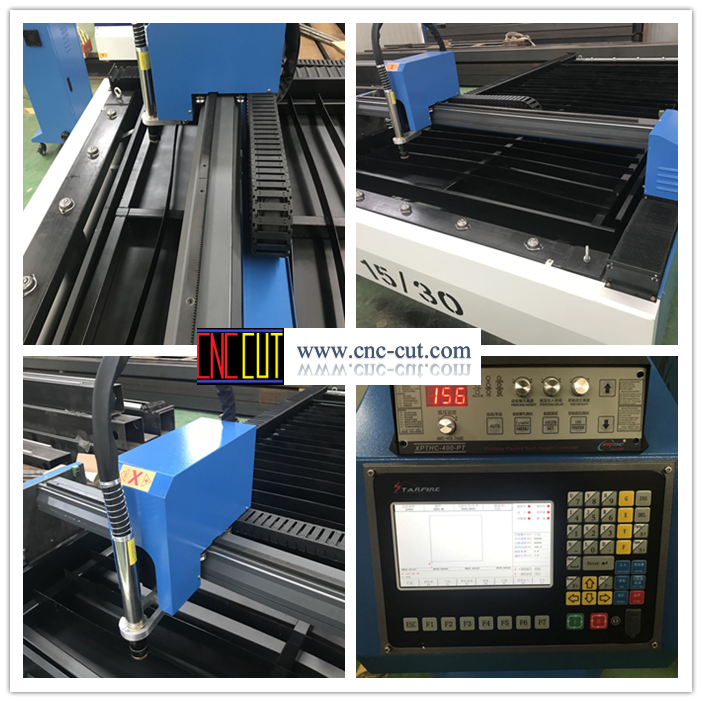

  1. Machine structure: Frame is thick-walled square tube overall welding, artificial aging bed, strong non-deformation, good rigidity.
  2. Track Dimensions: The longitudinal guide rail uses T rail linear guide, two rail side mounted longitudinal rack, like the gantry structure of the output gear to achieve the bilateral drive.
  3. Electronic control system: Control system is domestic well-known brands. The system adopts the modular structure, the wiring is simple, reasonable, standard, convenient maintenance, large number of use of scale integrated circuits, small size, stable performance and other advantages. The control circuit uses the professional shielding line, effective shielding interference; operation is stable and reliable
  4. Reducer mechanism: The use of domestic first-line brand reducer, can guarantee the good quality;
  5. Tooth rack: High-precision 7-stage fine grinding teeth.
  6. Preinstall packing and delivery, keep high precision and release you from manufacturing at site.
