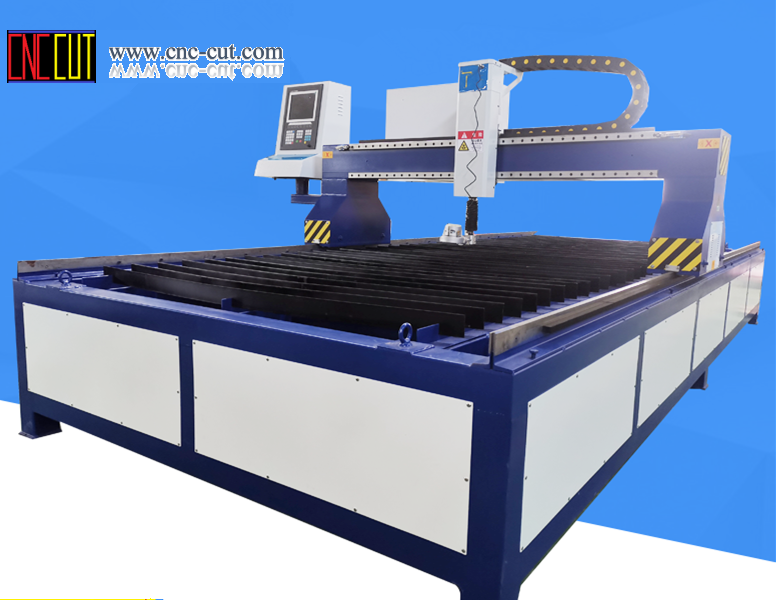

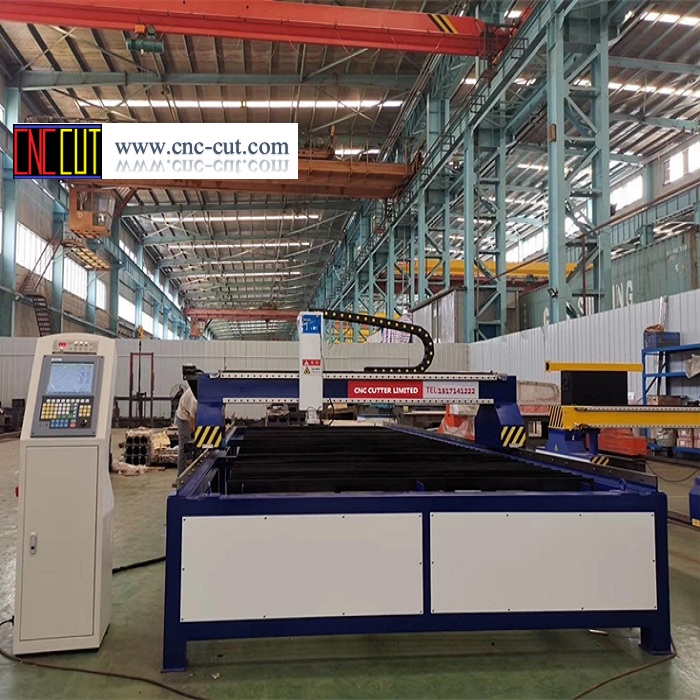

Heavy CNC Plasma and Flame Cutting Table
Heavy CNC Plasma and Flame Cutting Table Heavy CNC Plasma and Flame Cutting Table

Heavy CNC Plasma and Flame Cutting Table

CCL-BH

Heavy table CNC Plasma Flame Cutter CCL-BH, because of higher and heavy structure, the table permit CNC plasma and Oxyfuel cutting both, no worry the cutting affection to table itself.

Plasma CNC Cutting Table
Flame CNC Cutting Table
Heavy CNC Plasma and Flame Cutting Table    Heavy CNC Plasma and Flame Cutting Table

  Heavy plasma flame CNC cutting table CCL-BH by CNC cutter limited is the most complete CNC cutting machine. It provide the most free worrying plasma and flame CNC cutting solution.


Advanced Structure:

1.> Box shape and dual driving gantry structure, release gravity and stress, ensure good condition in long life.

2.> Reasonable size: 1.5m*2.5m or 1.5m*3.0m;
3.> Overall structure, release you from basis and cutting platform manufacturing; exhausting and parts collection system environmental and convenient.
4.> Taiwan linear guide+lift rail/Taiwan linear guide+G6 rack and pinion, Powerful engine+Planetary gear box; perfect running precise and stable transmission.

5.> Ball screw torch height controller, accuracy and safte.

6.> Enhanced and separated table, ensure heavy sheet carrying capacity.

Powerful CNC System:

1.> Break point & power off restoration.

2.> Returning to reference point.

3.> Kerf compensation.

4.> Built-in library, Common figures, sustain professional nesting(common line etc).

5.> 5.7'/10.4' Monitor, 64M-2000M memory for programs.

6.> Corner speed automatically adapt.


Parameter Outlook

Effective Cutting Width: 1.5m (can adjust)
Effective Cutting Length: 2.5m (can adjust)
Cutting Mode: Plasma and/or flame cutting

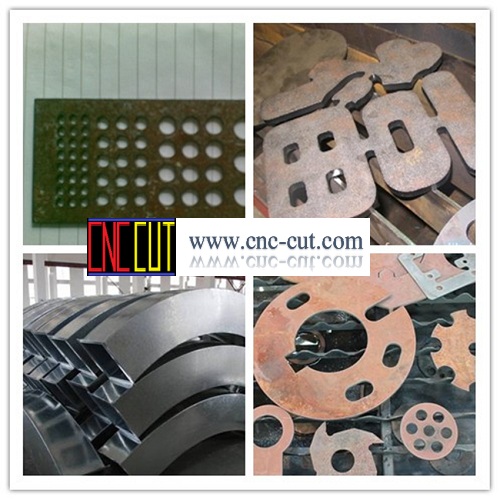

Cutting Material: Carbon Stainless Alloy steel, Aluminium, Zinc etc
Plasma Cutting Thickness: Depending on the NC plasma generator
Flame Cutting Thickness: 5-100mm
Cutting Speed: 0-6500mm per minute
Optional item: Extra plasma/flame cutting head
                     Japan Panasonic servo
                     NC plasma generator(Power Source)
