CCL-GT

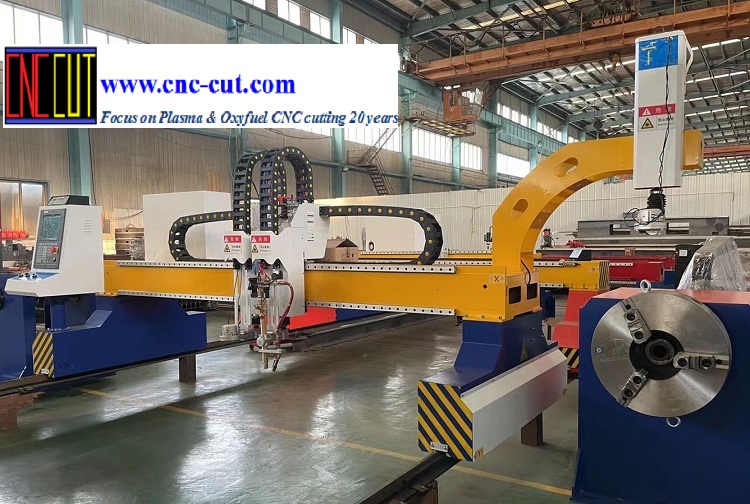

CCL-GT make metal sheet cutting and metal pipe cutting both functions in one gantry, suitable the fabrication workshops which have requirement of metal sheet & metal pipe cutting both.

Metal Sheet Cut
Metal Around Pipe Cut
Sheet and Pipe cnc Cutting Machine    Sheet and Pipe cnc Cutting Machine

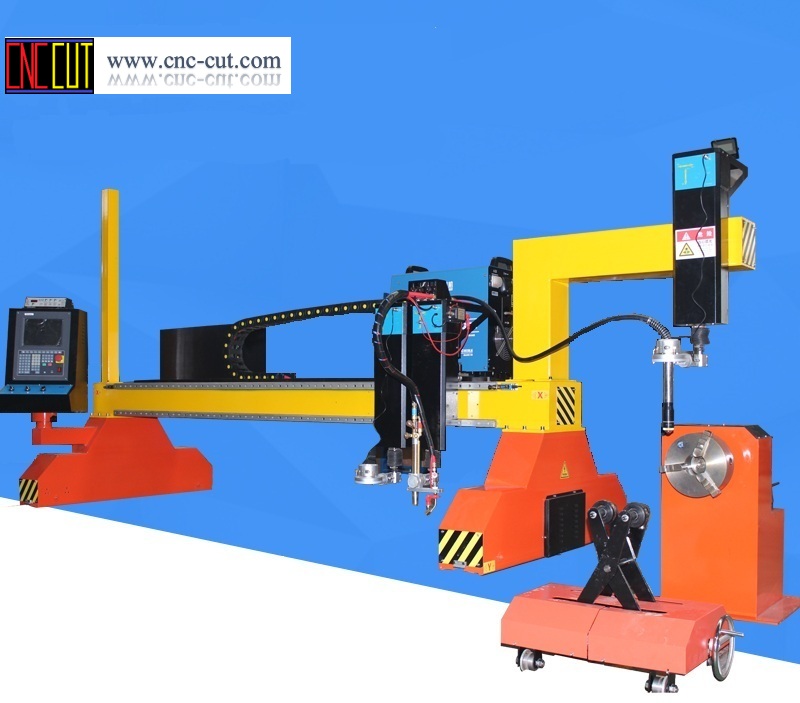

Gantry plasma and flame CNC Cutter with pipe cutting unit CCL-GT by CNC cutter limited provide you the efficient metal sheet and metal round pipe CNC cutting solutions on one machine.

Advanced Structure
1.> Box shape, dual driving gantry structure, release gravity and stress, ensure good condition in long life.
2.> Reasonable gantry size: 3.0m-5.0m, suitable for most kinds of metal sheet; and round pipe diameter 30-300, 60-600mm.
3.> Simple structure, divided basis and cutting platform, good rigidity, easy installation and disassemble, not weight limit to cutting material.
4.> Taiwan linear guide+fine finished train rail+G6 rack and pinion, Powerful Panasonic Servo+Planetary gear box; perfect running precise and stable transmission.
5.> Ball screw torch height controller, accuracy and safty.
6.> Separated Electric cabinet and CNC controller, safe operation, easy maintain.
7.> Powerful CNC system with USB connection, programming and operating is visible; plasma or flame cutting, sheet or pipe cutting one step success.

Parameter Outlook
Beam Width (X axis): 3m-5m
Rail Length (Y axis): 6m(can be lengthened)
Effective Cutting Width: 2.0m-4.0m
Effective Cutting Length: 4.0m(can be lengthened)
Effective round pipe cutting diameter: 30mm-600mm
Cutting Mode: CNC Flame and/or CNC Plasma
Flame Cutting Material: Carbon Stainless Alloy steel, Aluminium, Zinc etc
Flame Cutting Thickness: 5-200mm
Plasma Cutting Thickness: Depending on the plasma generator
Cutting Speed: 0-6500mm per minute
Optional item: Extra plasma/flame cutting head/Strip
                          Japan Panasonic servo
                          NC Plasma generator(power source)
