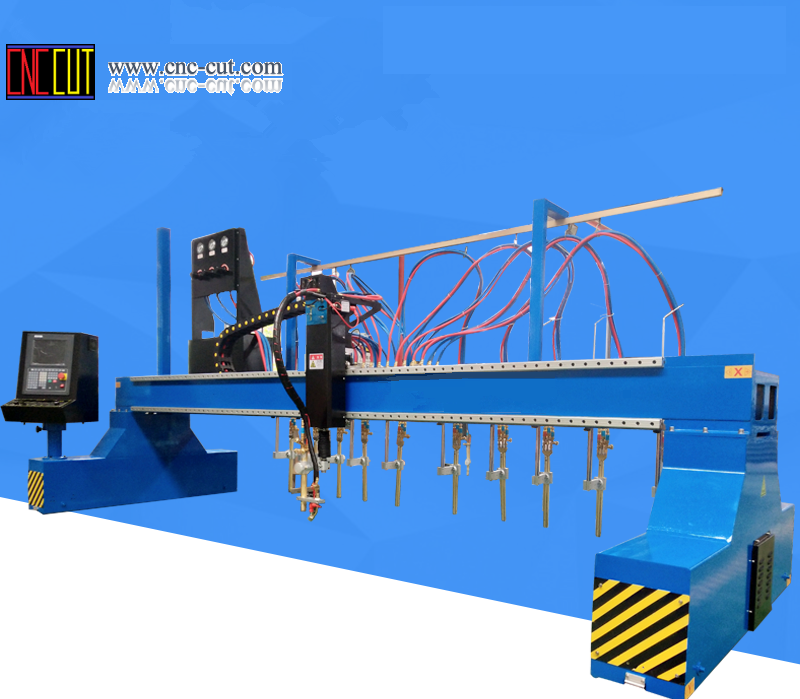

Multiple Strip Flame Cutting Machine
Multiple Strip Flame Cutting Machine Multiple Strip Flame Cutting MachineMultiple Strip Flame Cutting Machine

Multiple Strip Flame Cutting Machine

CCL-GL

Multiple flame cutting heads, can be CNC flame cutting heads and Strip cutting heads; Cutting area: 2.0m*4.0m, 3.0m*6.0m, 4m*8.0m etc as your required; Suitable perfectly for iron steel fabrication wo

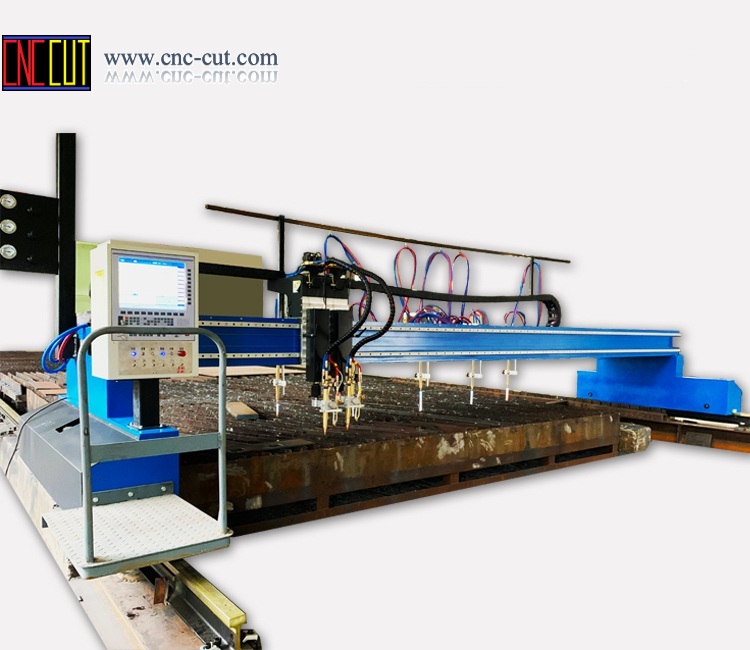

Flame CNC Cutting

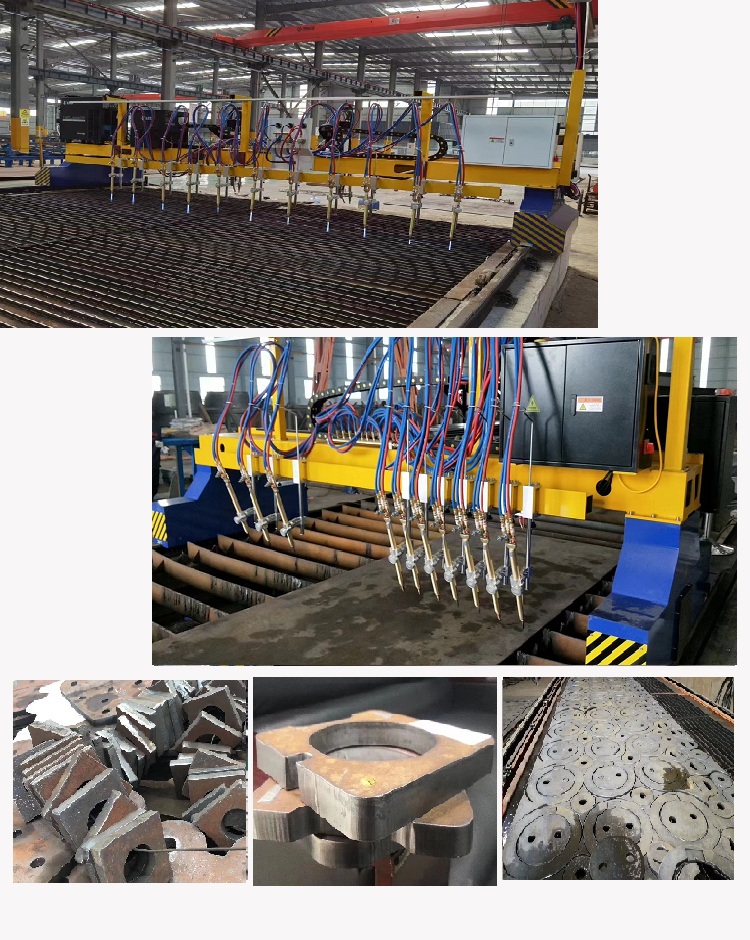

Flame Strip Cutting
Multiple Strip Flame Cutting Machine    Multiple Strip Flame Cutting Machine

Parameter


Item

Unit

Parameter

1

Rails center distance

mm

3000-7000(Customized)

2

Rail length

mm

8000(Customized)

3

Effective cutting width

mm

Rails center distance-800mm

4

Effective cutting length

mm

Rail length-2000mm

5

CNC Torch unit/carriage quantity

Set

0-6, or As customer requirement

6

Strip Torch unit/carriage quantity

Set

0-20, As customer requirement

7

Cutting Speed

mm/min

0-6500

8

Empty moving speed

mm/min

0-10000

9

Cutting thickness and material

mm

Flame: 6-300mm mild and medium steel.


Our advantage compared with the other suppliers:

  • Adopts the box welding structure, material uses 8mm national standard steel plate after laser cutting.
  • Frame upper surface and back used the bending machine to break into 90 degrees arc, this can greatly increase the whole machine beam rigidity, lengthens the service life.
  • The front of frame is with 18mm steel plate after welding with the entire surface of the planer, can greatly reduce the total deformation of the machine, improve the accuracy of the machinery.
  • The whole machine is by heat treatment to eliminate stress, with good rigidity, not deformation, high precision, light weight, small inertia characteristics.
  • Longitudinal drive frame (support frame): The two ends are equipped with a horizontal guide wheel, which can adjust the clamping degree of the eccentric on the bottom of the drive frame, so as to keep the whole machine in a stable direction in the movement.
  • Equipped with track dust collectors, at any time to scrape debris accumulated on the guide surface.
  • Longitudinal and transverse drive all have precision gear rack.
  • Cross-guide rail using precision cold-drawn guide plate, longitudinal guide is train rail-type rail through the precision processing.
