Gantry CNC Plasma Cutting Machine
Gantry CNC Plasma Cutting Machine Gantry CNC Plasma Cutting MachineGantry CNC Plasma Cutting MachineGantry CNC Plasma Cutting Machine

Gantry CNC Plasma Cutting Machine

CCL-GH

CCL-GH is heavy gantry structure, more stable and anti breaking in daily CNC plasma cutting heat and dirty circumstance. The CNC plasma cutting way or CNC flame cutting way is freely adopted as your a

Heavy Gantry Structure
Plasma and Flame Cutting
High durability
High durability
Gantry CNC Plasma Cutting Machine    Gantry CNC Plasma Cutting Machine

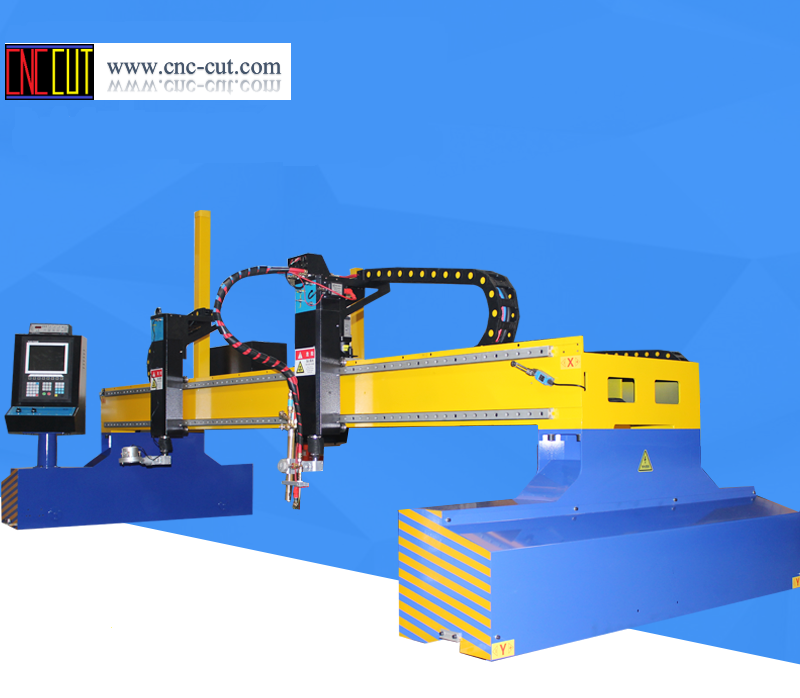

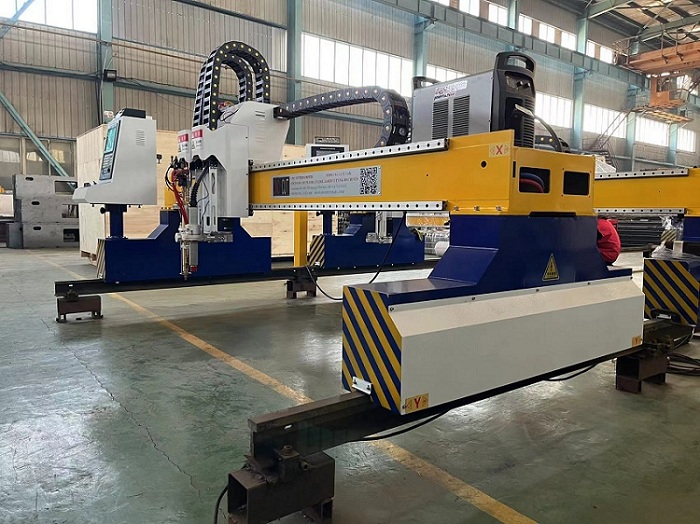

Heavy gantry plasma flame CNC cutter CCL-GH

Advantages:

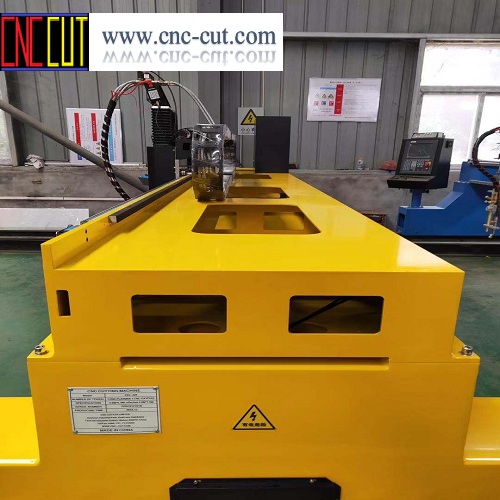

  • 650mm/850mm+18mm metal plate welding heavy high precision beam.
  • Dual driving structure; good rigidity, released gravity and stress, ensure good condition in long life.
  • Gantry span:4.0m-10m, suitable all kinds of metal sheet area.
  • International famous brands components, say, Airtac valves, Leadshine power supply, Hiwin linear guide+fine finished train rail+G7 rack and pinion, Panasonic powerful Servo+Planetary gear box, Schnaider relays etc; perfect running precise, stable transmission.
  • CAD based CNC controller and its easy using.
  • Full auto torch height controller, full auto ignition, anti collision, accuracy and safe.


Parameter:

  • Beam Width (X axis):   4m-10m
  • Rail Length (Y axis):   6m(can be lengthened)
  • Effective Cutting Width:   3.0m-9.0m
  • Effective Cutting Length:   4.0m(can be lengthened)
  • Cutting Mode:   CNC flame and/or CNC plasma and/or Stripe flame
  • Flame Cutting Material:   Carbon steel, Stainless steel, Alloy steel, Aluminium, Zinc etc

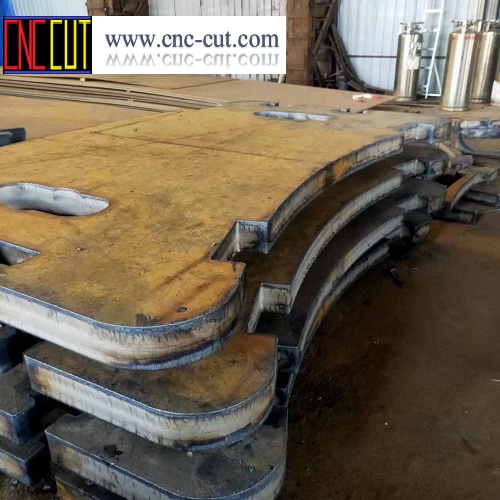

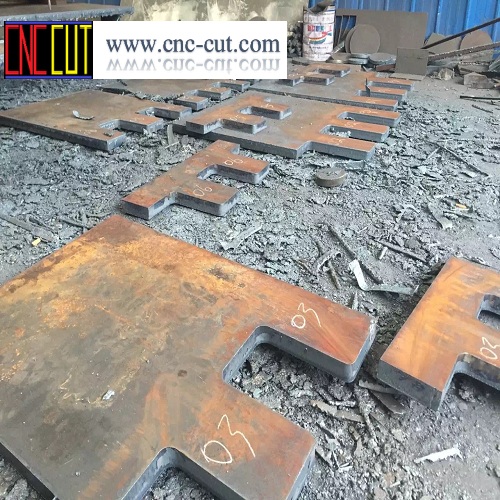

  • Flame Cutting Thickness:   5-300mm
  • Plasma Cutting Thickness:   0.1-75mm or Depending on the plasma generator
  • Cutting Speed:   0-6500mm per minute
  • Optional item:   Extra cnc plasma/ cnc flame cutting head/ Strip head /NC Plasma generator(power source)

Good News: Available for free update to heavy structure in 2021!
