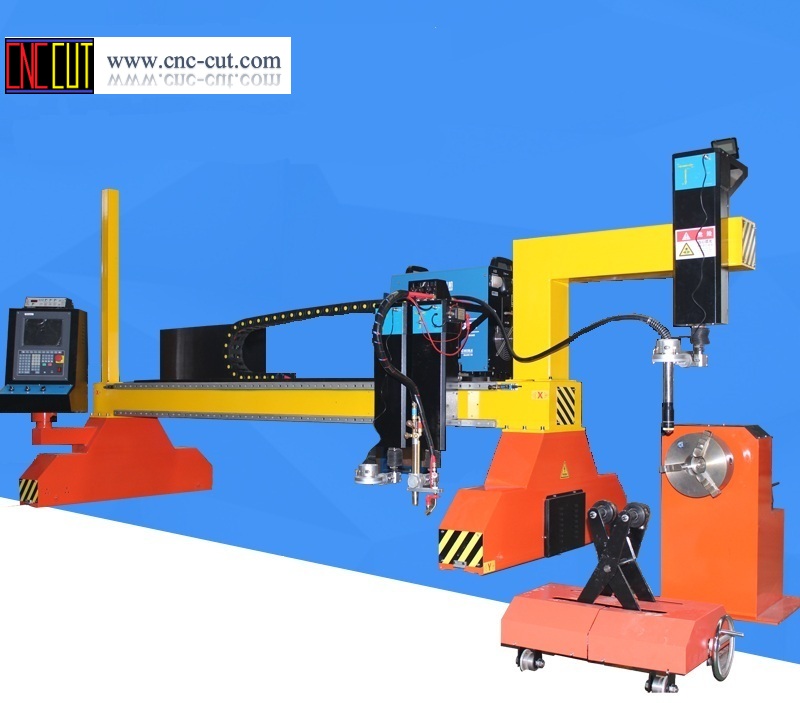

Gantry CNC Plasma Cutting Machine for Metal Sheet and Pipe
Gantry CNC Plasma Cutting Machine for Metal Sheet and Pipe Gantry CNC Plasma Cutting Machine for Metal Sheet and PipeGantry CNC Plasma Cutting Machine for Metal Sheet and Pipe

Gantry CNC Plasma Cutting Machine for Metal Sheet and Pipe

CCL-GT

CCL-GT suitable for metal sheet and pipe cutting both on one machine; Plasma and or flame CNC cutting way; available for sheet area: 2.0m*4.0m, 3.0m*6.0m, 4m*8.0m etc and pipe diameter 30mm-300mm, 60m

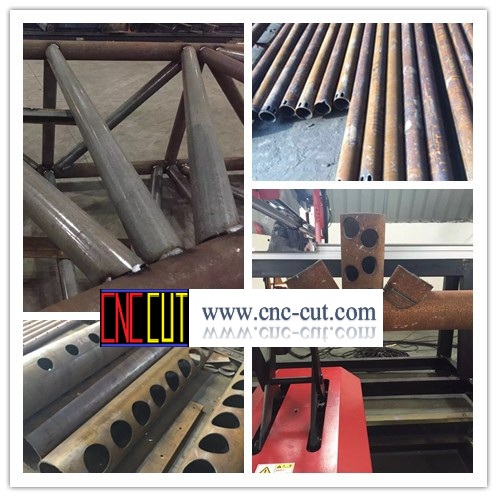

Metal Pipe and Sheet CNC Cutting

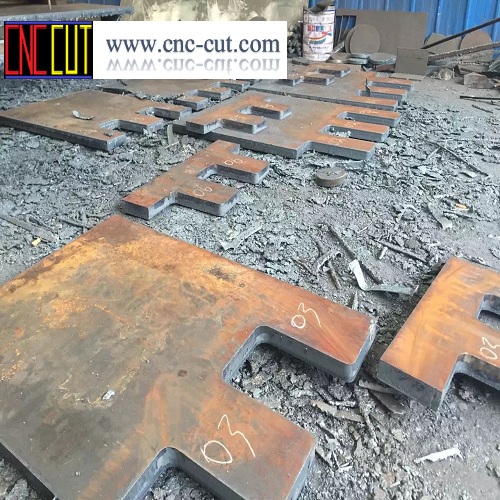

Plasma CNC cutting
Gantry CNC Plasma Cutting Machine for Metal Sheet and Pipe    Gantry CNC Plasma Cutting Machine for Metal Sheet and Pipe


Parameter


Item

Unit

Parameter

1

Rails center distance

mm

3000-7000(Customized available)

2

Rail length

mm

8000(Customized available)

3

Effective cutting width

mm

Rails center distance-800mm

4

Effective cutting length

mm

Rail length-2000mm

5

Pipe diameter

mm

30-300mm; 60-600mm

6

Pipe length

mm

Rail length-2000mm

7

Cutting Speed

mm/min

0-6500

8

Empty moving speed

mm/min

0-10000

9

Cutting thickness

mm

Plasma: 0.1-75mm Mild steel, stainless steel, Aluminium, copper etc

Flame: 6-300mm mild and medium steel.


Our advantage compared with the other suppliers:

  1. Adopts the box welding structure, material uses 8mm national standard steel plate after laser cutting;
  2. The frame used the bending machine to break into 90 degrees arc, greatly increase the whole machine beam rigidity, lengthens the service life.
  3. The whole machine is by heat treatment to eliminate stress, with good rigidity, not deformation, high precision, light weight, small inertia characteristics.
  4. Longitudinal frame two ends are equipped with a horizontal guide wheel, which can adjust the clamping degree of the eccentric on the bottom of the drive frame, so as to keep the whole machine in a stable direction in the movement.
  5. Equipped with track dust collectors, at any time to scrape debris accumulated on the guide surface.
  6. Longitudinal and transverse drive all have precision gear rack to drive.
  7. Cross guide rail using precision cold-drawn guide plate, longitudinal guide is train rail-type rail through the precision processing.
  8. International famous precision gear reducer, Servo motor, valves, hose etc, to ensure cutting quality and long life time.

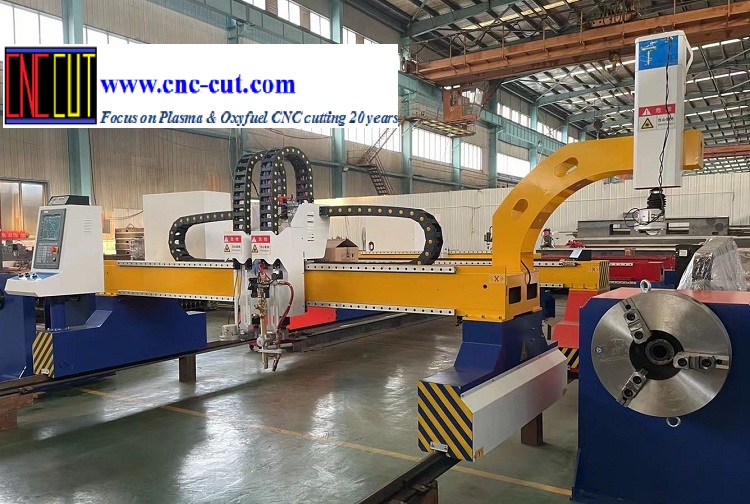

Newest version metal sheet and round Pipe cnc plasma cutting machine CCL-GT
