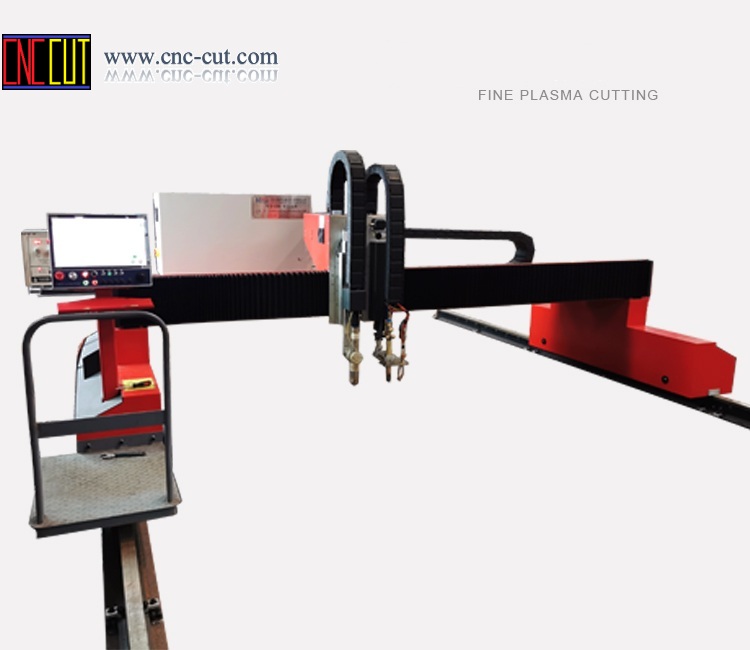

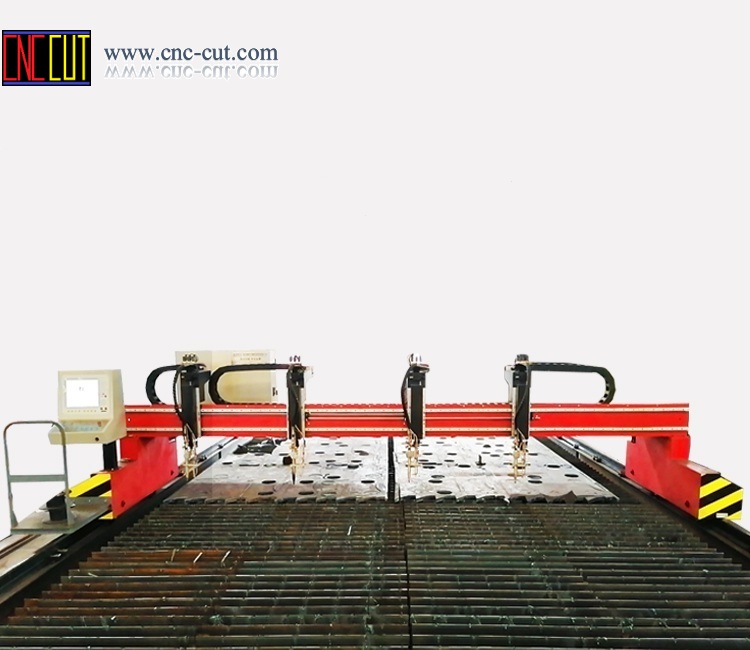

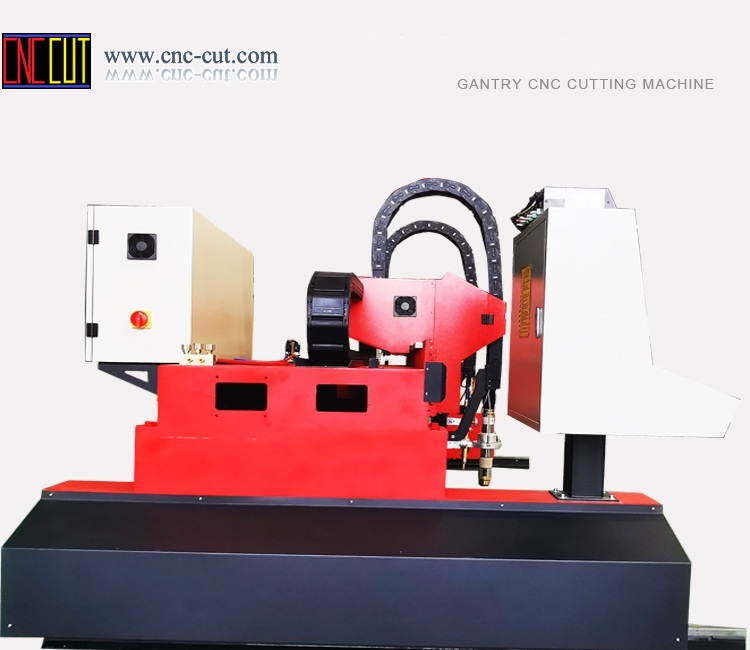

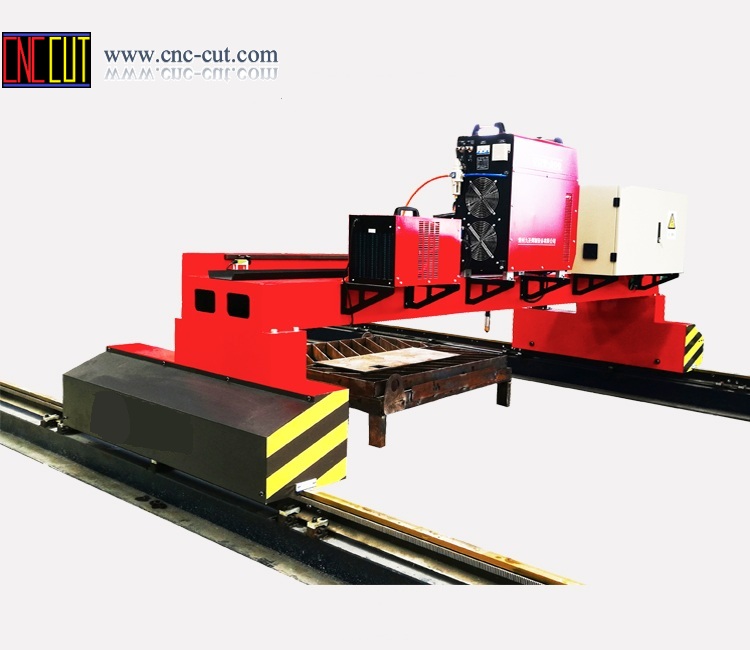

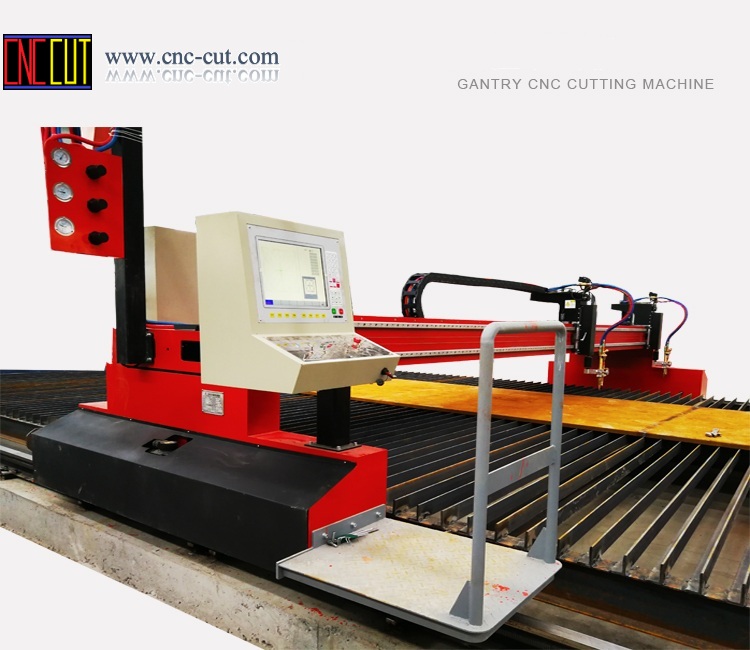

Gantry CNC Plasma Cutter
Gantry CNC Plasma Cutter Gantry CNC Plasma CutterGantry CNC Plasma CutterGantry CNC Plasma Cutter

Gantry CNC Plasma Cutter

CCL-GH

CNC plasma cutting machine with heavy gantry structure, cutting area can be 2.0m*4.0m, 3.0m*6.0m, 4m*8.0m etc as your required. Stable, durable, high precision CNC plasma cutting machine. Meanwhile ex

CNC plasma cutter
Gantry plasma cutter
Gantry CNC Plasma Cutter    Gantry CNC Plasma Cutter

Parameter


Item

Unit

Parameter

1

Rails center distance

mm

3000-7000(Customized available)

2

Rail length

mm

8000(Customized available)

3

Effective cutting width

mm

Rails center distance-800mm

4

Effective cutting length

mm

Rail length-2000mm

5

Torch unit/carriage quantity

Set

As customer requirement

6

THC travel distance

mm

200

7

Cutting Speed

mm/min

0-6500

8

Empty moving speed

mm/min

0-10000

9

Cutting thickness

mm

Plasma: 0.1-75mm Mild steel, stainless steel, Aluminium, copper etc

Flame: 6-300mm mild and medium steel.


Our advantage compared with the other suppliers:

  • Adopts the box welding structure, material uses 8mm national standard steel plate after laser cutting.
  • Frame upper surface and back used the bending machine to break into 90 degrees arc, this can greatly increase the whole machine beam rigidity, lengthens the service life.
  • The front of frame is with 18mm steel plate after welding with the entire surface of the planer, can greatly reduce the total deformation of the machine, improve the accuracy of the machinery.
  • The whole machine is by heat treatment to eliminate stress, with good rigidity, not deformation, high precision, light weight, small inertia characteristics.
  • Longitudinal drive frame (support frame): The two ends are equipped with a horizontal guide wheel, which can adjust the clamping degree of the eccentric on the bottom of the drive frame, so as to keep the whole machine in a stable direction in the movement.
  • Equipped with track dust collectors, at any time to scrape debris accumulated on the guide surface.
  • Longitudinal and transverse drive all have precision gear rack.
  • Cross-guide rail using precision cold-drawn guide plate, longitudinal guide is train rail-type rail through the precision processing.
