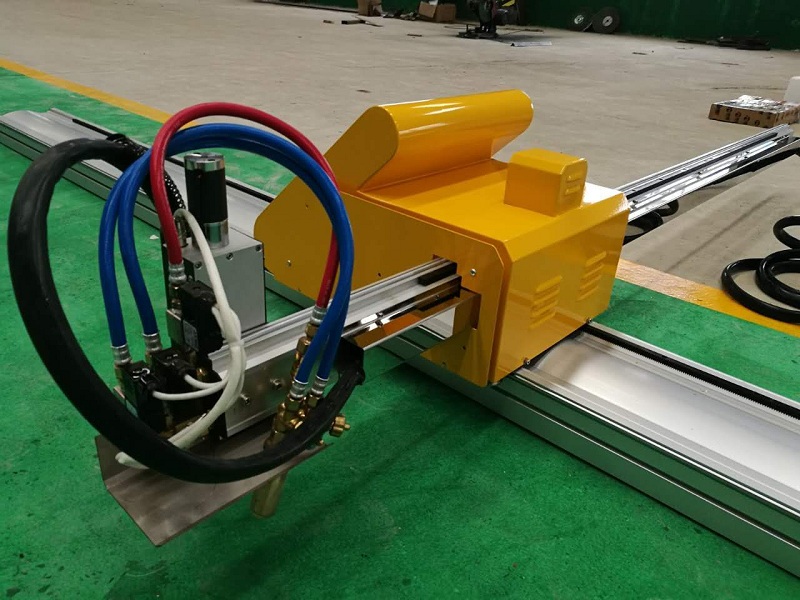

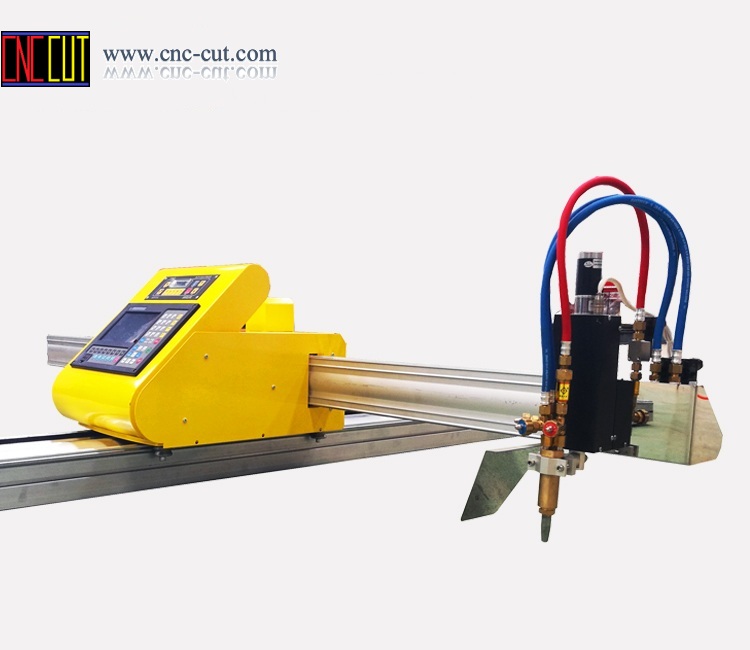

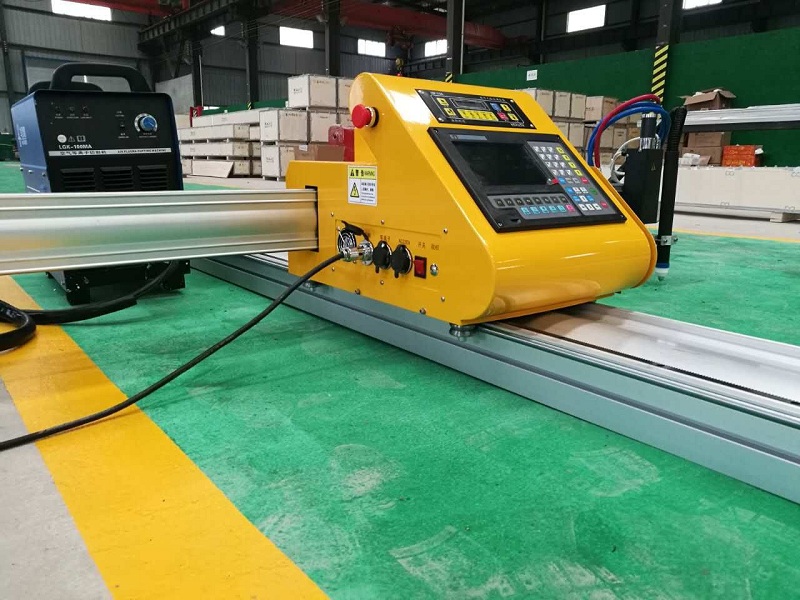

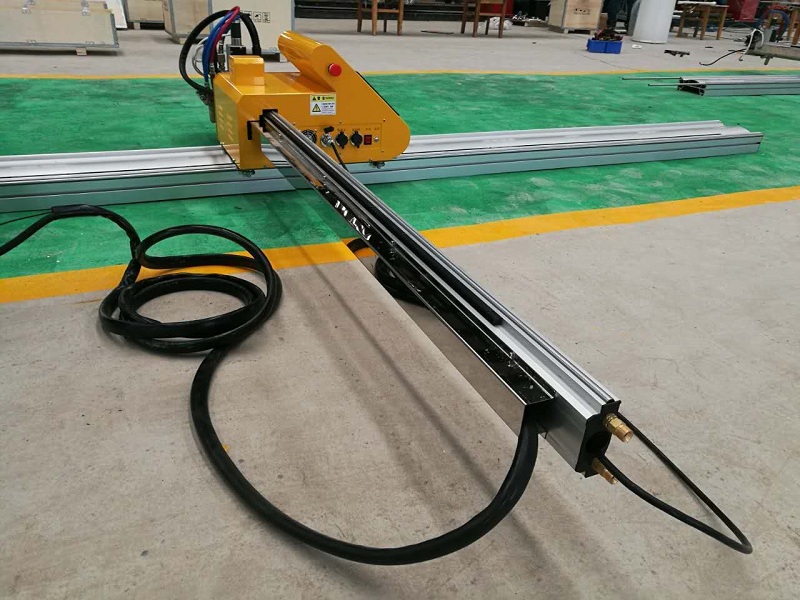

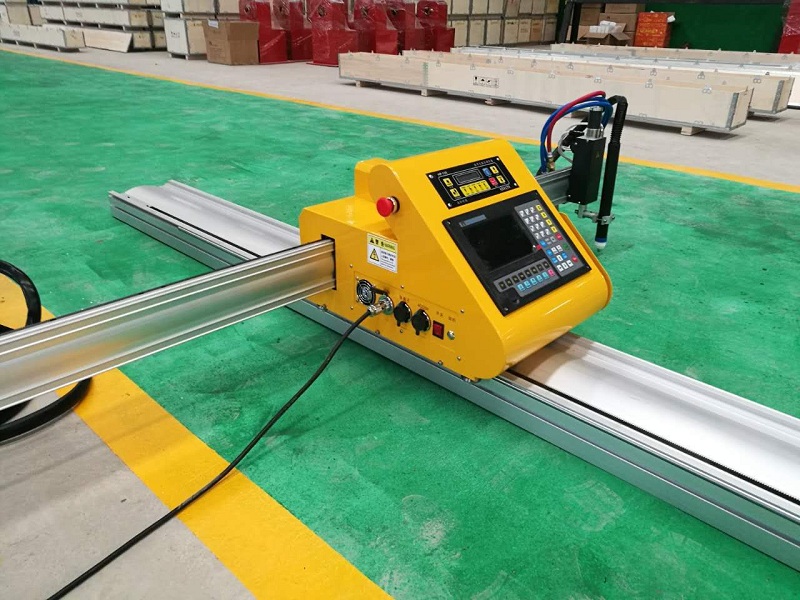

Portable CNC Plasma and Flame Cutting Machine
Portable CNC Plasma and Flame Cutting Machine Portable CNC Plasma and Flame Cutting MachinePortable CNC Plasma and Flame Cutting MachinePortable CNC Plasma and Flame Cutting MachinePortable CNC Plasma and Flame Cutting Machine

Portable CNC Plasma and Flame Cutting Machine

CCL-P

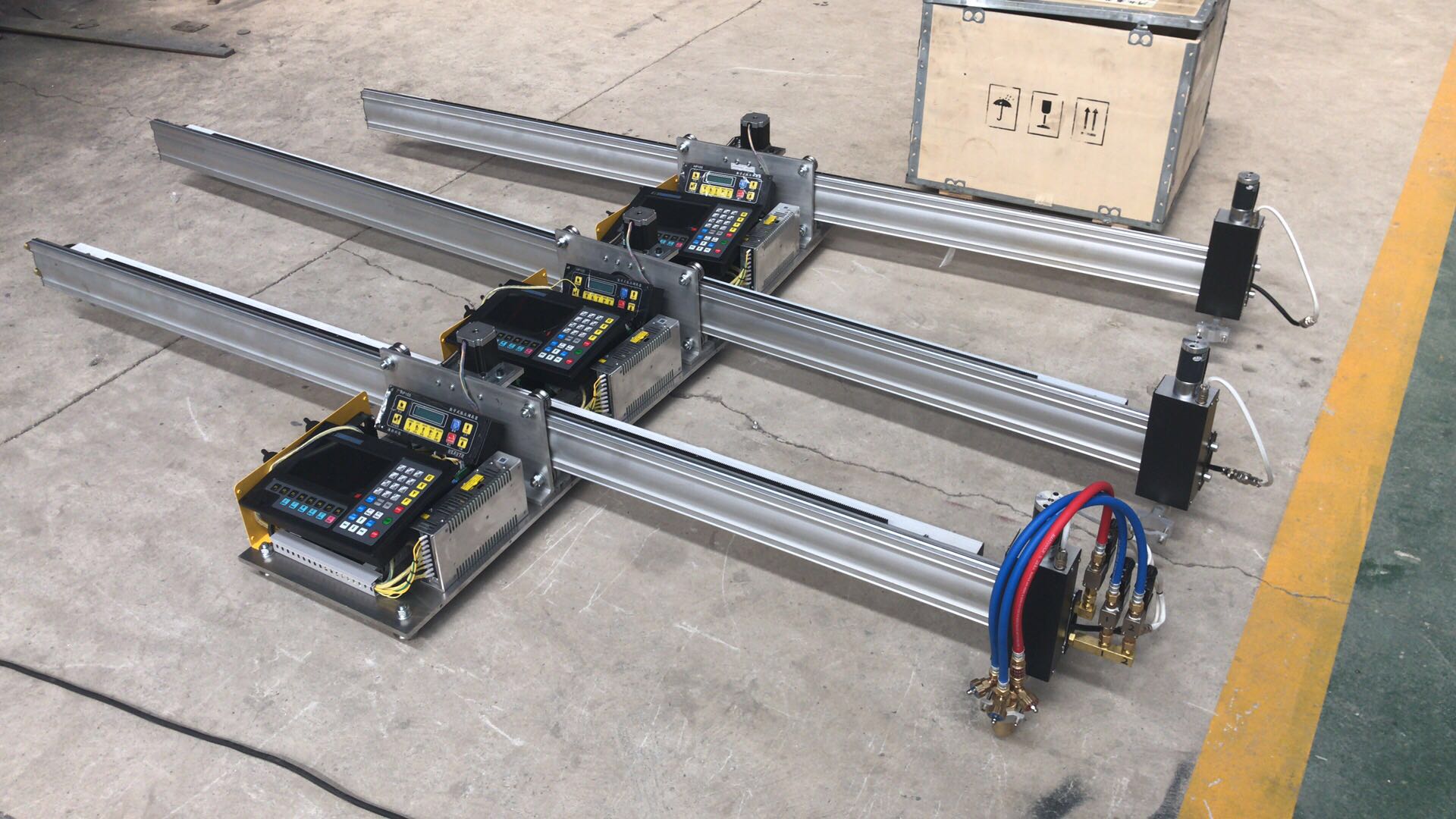

CCL-P is the portable CNC cutting machine with plasma cutting way or flame cutting way; it is light and smart, little place occupation, with common cutting area 1.5m*3.0m to 2.0m*6.0m etc.

Crossbow Plasma Cutter type
Portable cnc plasma cutter
Portable CNC Plasma and Flame Cutting Machine    Portable CNC Plasma and Flame Cutting Machine

Parameter:

Item

Unit

Parameter

1

Beam span

mm

2200/2600

2

Rail length

mm

3000/6500(Customized)

3

Effective cutting span

mm

1600/2000

4

Effective cutting length

mm

2500/6000

5

THC lifting travel

mm

105

6

Cutting Speed

mm/min

0-6000

7

Empty moving speed

mm/min

0-8000

8

Repeat position precision

mm

±0.2

9

Flame cutting thickness

mm

6-85

10

Plasma cutting thickness

mm

0.1-25

11

Flame cutting speed

mm/min

50-900

12

Plasma cutting speed

mm/min

100-6000


Advantages compared with other suppliers:

  • Structure Made of hard aluminum alloy, good balance performance, light weight, small running inertia, strong stability, and good shape.
  • CNC Support Base Made of 10mm hard aluminum alloy plate, self-light, good durability.
  • Solenoid valve Taiwan AIRTAC solenoid valve, bear long time 1.4Mp high pressure situation, stable work, efficient, durable.
  • Drive mode Driven by 57# precision stepping motor, stable and fast running speed.
  • Gear/rack All high-precision gears and racks (accuracy grade 7), stable at high speed, and each rack uses surface treatment, is not easy to deform.
  • CNC control system operation interface is simple, easy to learn, and not easy to crash.
  • Transmission bearing adopts Φ39mm high-precision anti-rust bearing shaft, each bearing can bear 200KG weight.
  • Automatic nesting software with automatic co-edge; automatic bridging, etc.
  • Overall packaging Customized lock-type packaging according to exporting requirements, increase crashworthiness when transporting equipment, convenient packaging.
