Small cnc plasma flame cutting machine
Small cnc plasma flame cutting machine Small cnc plasma flame cutting machineSmall cnc plasma flame cutting machine

Small cnc plasma flame cutting machine

CCL-P

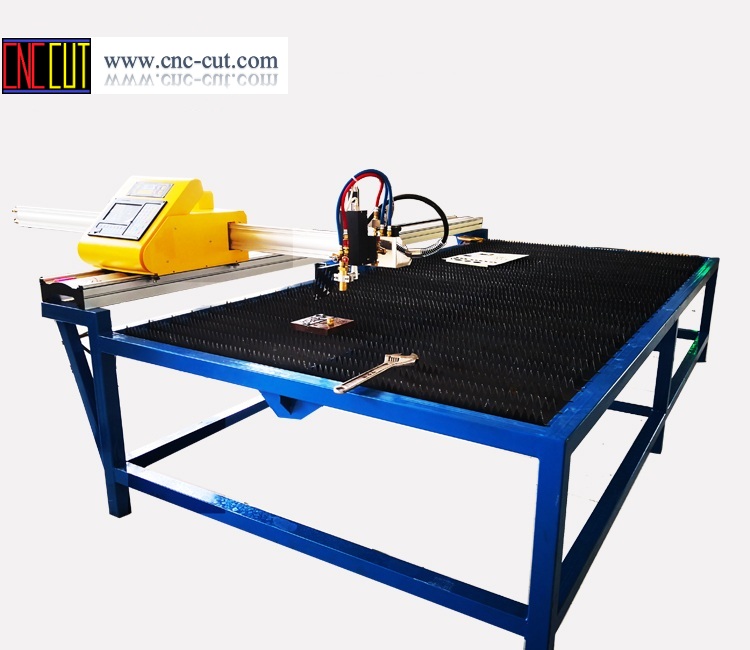

CCL-P is the most small CNC plasma cutting machine or CNC flame cutting machine; it is so portable small, so that it is most economical CNC plasma and or flame cutter.

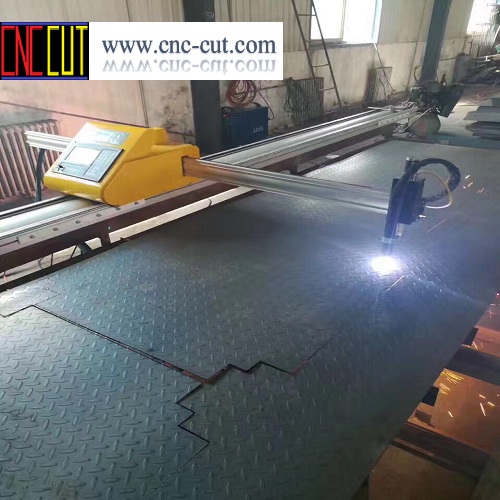

Small CNC Plasma
Small CNC Flame
Small cnc plasma flame cutting machine    Small cnc plasma flame cutting machine



Parameter:

Item

Unit

Parameter

1

Beam span

mm

2200/2600

2

Rail length

mm

3000/6500(Customized available)

3

Effective cutting span

mm

1500-2000

4

Effective cutting length

mm

2500-6000

5

THC lifting travel

mm

105

6

Cutting Speed

mm/min

0-6500

7

Empty moving speed

mm/min

0-8000

8

Repeat position precision

mm

±0.2

9

Flame cutting thickness

mm

6-150

10

Plasma cutting thickness

mm

Depending on plasma generator

11

Flame cutting speed

mm/min

50-900

12

Plasma cutting speed

mm/min

100-6500


Advantages compared with other suppliers:

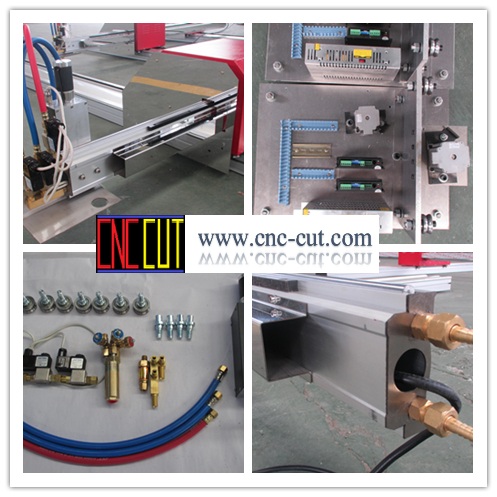

1. Structure Made of 6061 hard aluminum alloy, good balance performance, light weight, small running inertia, strong stability, and good shape.
2. CNC Support Base Made of 10mm hard aluminum alloy plate, self-light, good durability.
3. Solenoid valve Taiwan AIRTAC solenoid valve, bear long time 1.4Mp high pressure situation, stable work, efficient, durable.
4. Drive mode Driven by 57# precision stepping motor, stable and fast running speed.

5. Gear/rack All high-precision gears and racks (accuracy grade 7), stable at high speed, and each rack uses surface treatment, is not easy to deform.

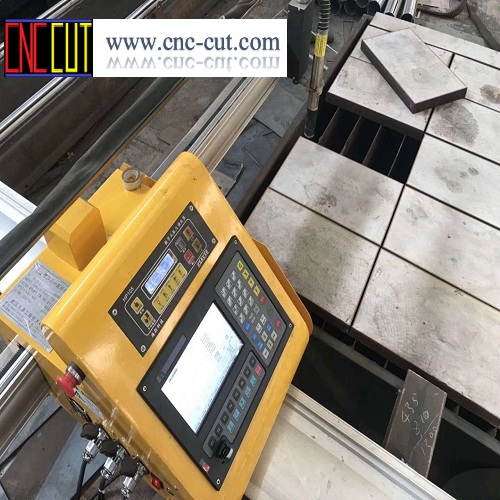

6. CNC control system F-2100B numerical control system, the operation interface is simple, easy to learn, and not easy to crash.
7. Transmission bearing adopts Φ39mm high-precision anti-rust bearing shaft, each bearing can bear 200KG weight.
8. Automatic nesting software with automatic co-edge; automatic bridging, etc.

9. Overall packaging Customized lock-type packaging according to exporting requirements, increase crashworthiness when transporting equipment, convenient packaging, beautiful appearance.
