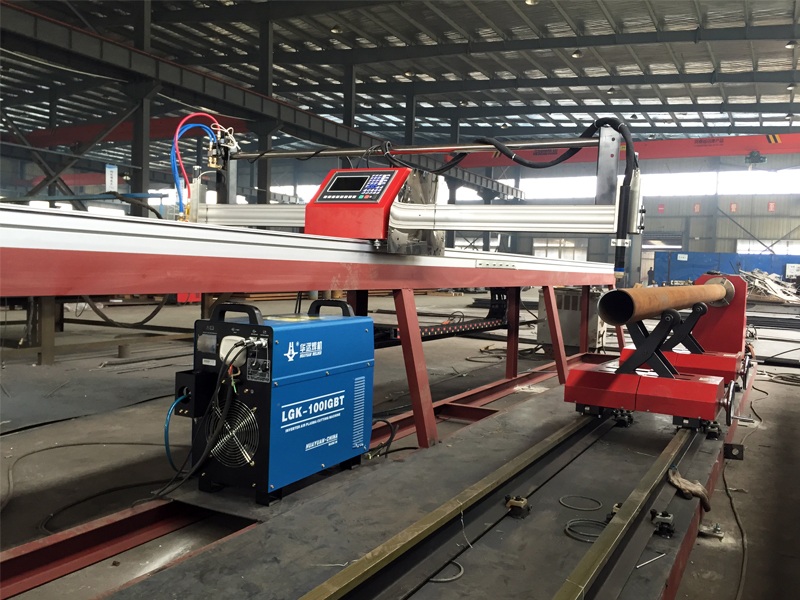

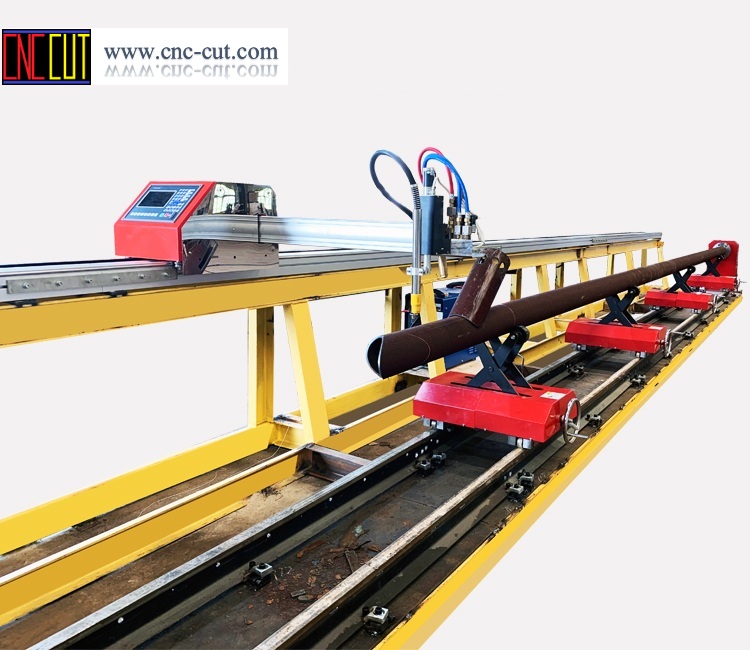

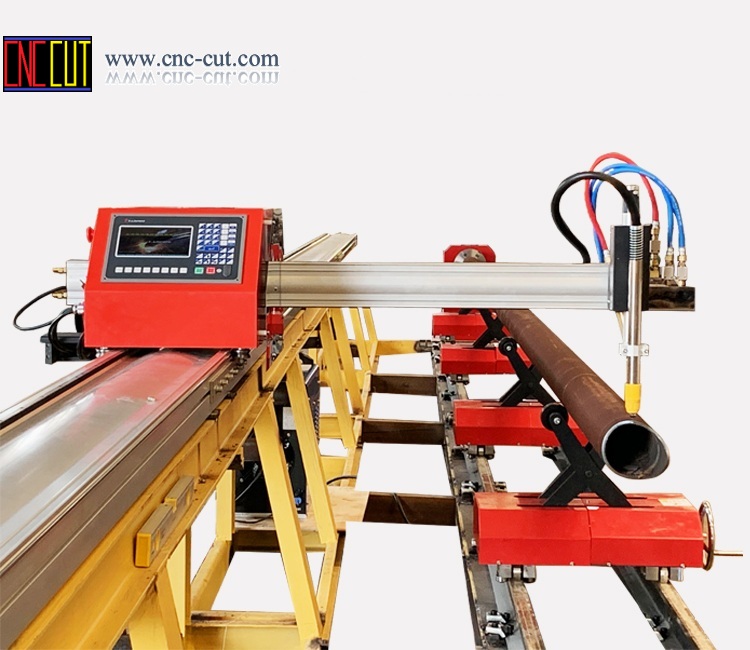

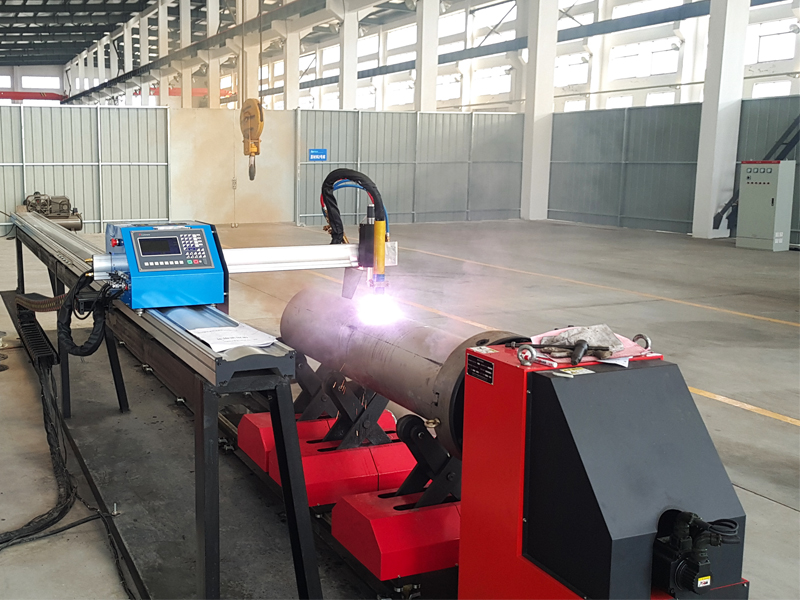

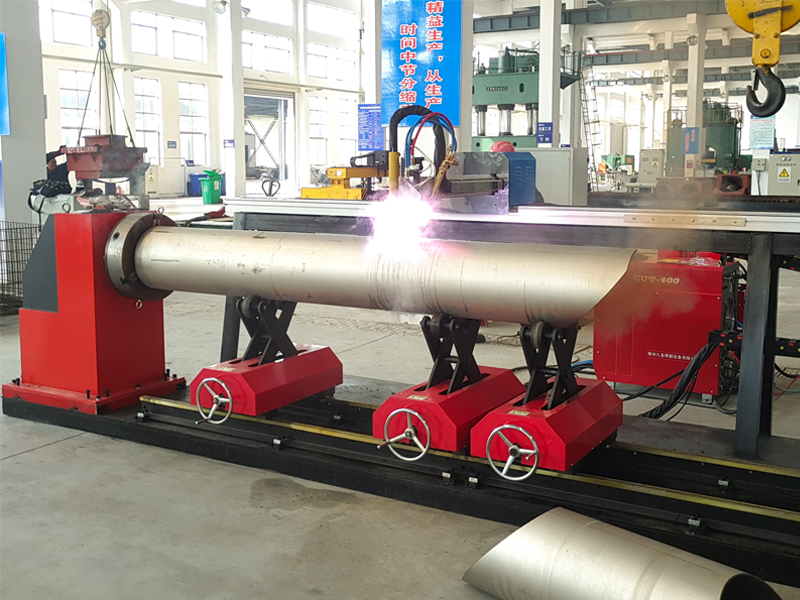

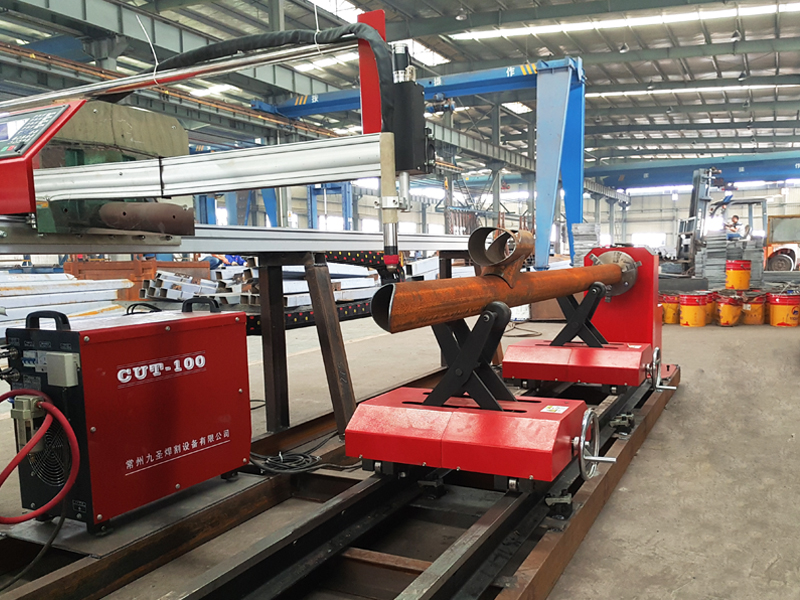

Portable CNC Plasma Flame Cutting Machine for Metal Pipe
Portable CNC Plasma Flame Cutting Machine for Metal Pipe Portable CNC Plasma Flame Cutting Machine for Metal PipePortable CNC Plasma Flame Cutting Machine for Metal PipePortable CNC Plasma Flame Cutting Machine for Metal Pipe

Portable CNC Plasma Flame Cutting Machine for Metal Pipe

CCL-TP

CCL-TP CNC plasma cutting and or CNC flame cutting; Suitable for round metal pipe diameter 40mm-320mm and metal plate 1.0m*3.0, 1.5m*3.0m etc;

Sheet CNC cutting
Metal CNC cutting
Portable CNC Plasma Flame Cutting Machine for Metal Pipe    Portable CNC Plasma Flame Cutting Machine for Metal Pipe

*Overall compact miniature structure

*Operation is small, nimble

*Can be for metal plate and pipe cutting both.



Parameter:

Item

Parameter

CNC Control Axis

2/3

Cutting pipe length

3-12m customized

Chuck Size

250#

Cutting pipe diameter

Φ40mm-Φ320mm(Or Customized)

Max loading weight

>800KG

Pipe Ovality

≤2%

Running precision

±0.2/m

Torch up down distance

130mm

Flame cutting thickness

Piercing:5mm-50mm/ Rim:150mm

Plasma cutting thickness

0.1-25mm

Cutting Speed

Flame cutting way 700mm/min

Plasma cutting 0-6500mm/min


Feature

  1. Adopts the portable cross structure, host and pipe are arranged in parallel.
  2. Precision screw lifting device, with flame or plasma cutting torch as cutting way.
  3. Steel pipe clamp adopts the chuck, support uses the screw drive, movable and can lift to support round pipe.
  4. Cutting controlled by host movement and tube rotation, pipe end of the pipe hole automatic cutting.
  5. The Chuck adopts imported servo motor, ensured running balance of the whole machine, long life simple operation and high efficiency.
  6. Suitable for 40-325mm pipe diameter and does not require bevel function.
  7. cnc cutter LIMITED TP Series portable CNC intersecting line cutting machine is a kind of steel pipe and non-ferrous metal pipe joint at the intersection, of the intersection hole, intersection line end, elbow (shrimp Festival) automatic calculation and cutting equipment.
  8. The equipment is widely used in construction, steel structure, chemical industry, shipbuilding, mechanical engineering, metallurgy, electricity and other industries of the pipeline structure of the cutting process. Which this kind of processing in the past mostly using manual production model, scribing, manual lofting, manual cutting, artificial grinding and other backward and complicated operation process.
