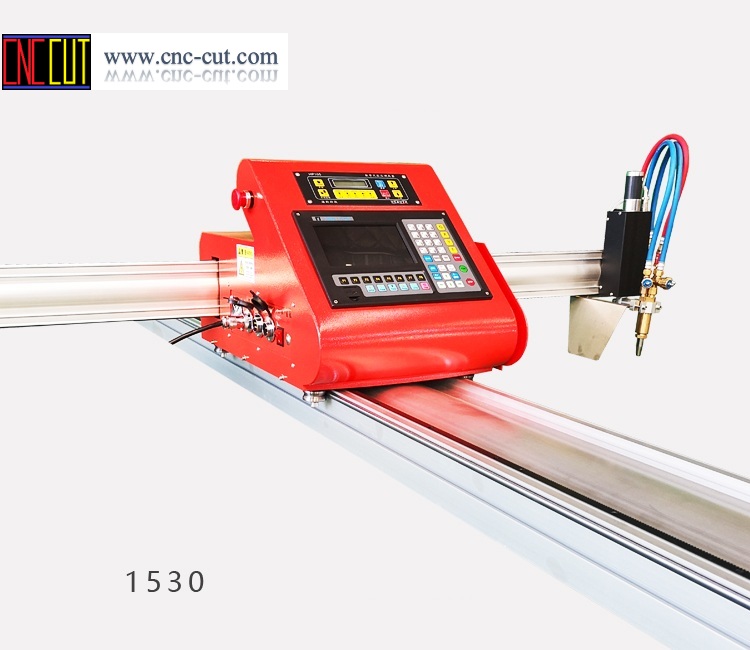

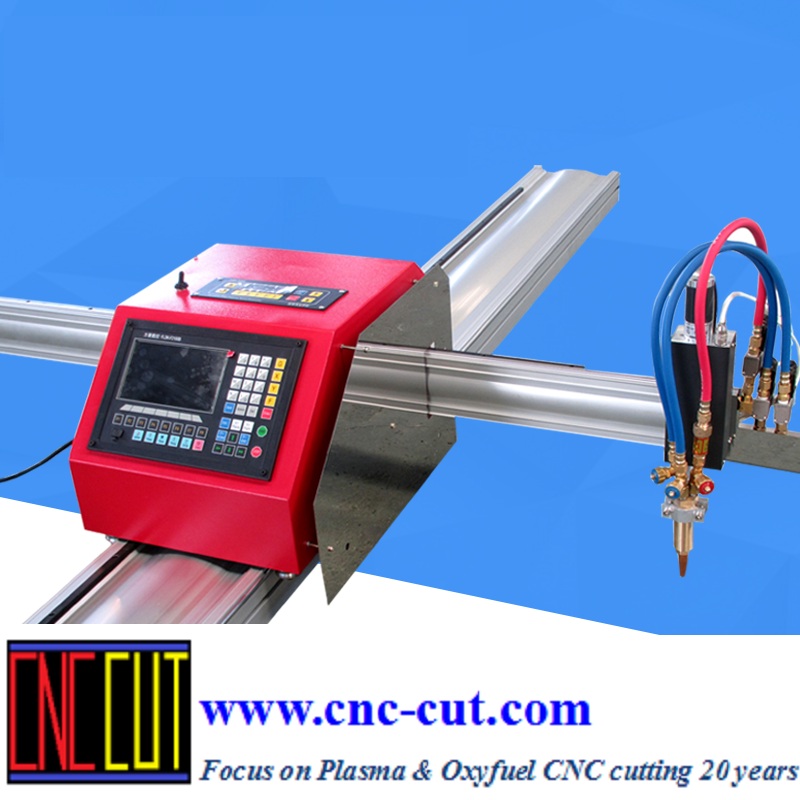

Mini CNC Flame Cutting Machine
Mini CNC Flame Cutting Machine Mini CNC Flame Cutting MachineMini CNC Flame Cutting Machine

Mini CNC Flame Cutting Machine

CCL-P

Mini type cnc flame cutting machine; Cutting area: effective cutting area 4ft*8ft or more; Mini and smart, no fixed place occupation; the most cheapest cnc flame cutting machine.

Mini type cnc cutter
Flame or Plasma cutting way
Mini CNC Flame Cutting Machine    Mini CNC Flame Cutting Machine


Parameter:

Item

Unit

Parameter

1

Beam span

mm

2200/2600

2

Rail length

mm

3000/6500(Customized available)

3

Effective cutting span

mm

1500-2000

4

Effective cutting length

mm

2500/6000

5

THC lifting travel

mm

105

6

Cutting Speed

mm/min

0-6000

7

Empty moving speed

mm/min

0-8000

8

Repeat position precision

mm

±0.2

9

Flame cutting thickness

mm

6-120

10

Plasma cutting thickness (Optional)

mm

0.1-25 or depending on plasma generator

11

Flame cutting speed

mm/min

50-900

12

Plasma cutting speed (Optional)

mm/min

100-6000


Advantages compared with other suppliers:


  • Structure Made of hard aluminum alloy, good balance performance, light weight, small running inertia, strong stability, and good shape.
  • CNC Support Base Made of 10mm hard aluminum alloy plate, self-light, good durability.
  • Taiwan AIRTAC solenoid valve, bear long time 1.4Mp high pressure situation, stable work, efficient, durable.



  • Drive mode Driven by 57# precision stepping motor, stable and fast running speed.
  • Gear/rack All high-precision gears and racks (accuracy grade 7), stable at high speed, and each rack uses surface treatment, is not easy to deform.

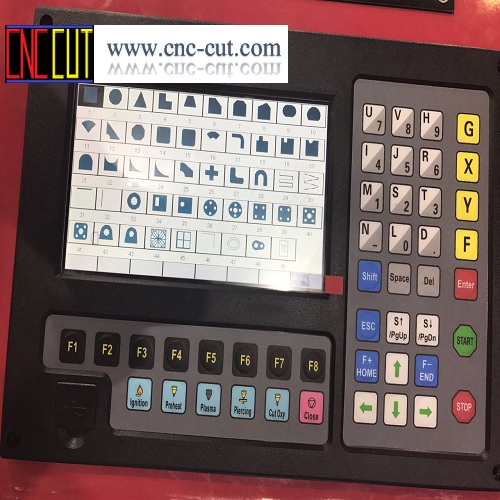

  • CNC control system F-2100B numerical control system, the operation interface is simple, easy to learn, and not easy to crash.
  • Transmission bearing adopts Φ39mm high-precision anti-rust bearing shaft, each bearing can bear 200KG weight.
  • Automatic nesting software with automatic co-edge; automatic bridging, etc.
  • Anti high tempereture and heat design, with full directions anti dross covers.
  • Overall packaging Customized lock-type packaging according to exporting requirements, increase crashworthiness when transporting equipment, convenient packaging, beautiful appearance.
