China Made NC plasma generator - Huayuan
China Made NC plasma generator - Huayuan China Made NC plasma generator - Huayuan

China Made NC plasma generator - Huayuan

China Made NC plasma generator-Huayuan

China made good quality NC plasma generator, High performance, Using Long life and fine cutting Technology can significantly improve cutting cost. There are normal options of 60A-400A, say LGK-63T, LG

LGK-400HD
LGK-120HD
LGK-300HD
LGK-300HD
China Made NC plasma generator - Huayuan    China Made NC plasma generator - Huayuan

China made High quality plasma generator, compatible with fine plasma cutting torch.

Ensure good cutting result and meanwhile reducing purchasing spending.

More powerful plasma power supply more than 100A, like LGK-120HD, LGK-200HD, LGK-300HD, LGK-400HD etc also avaiable.

LGK-120HD

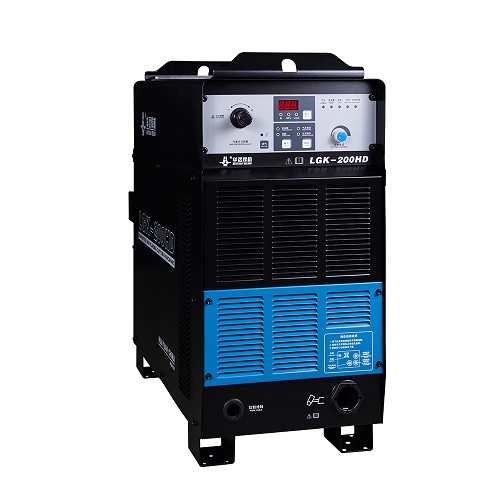

LGK-200HD

LGK-300HD

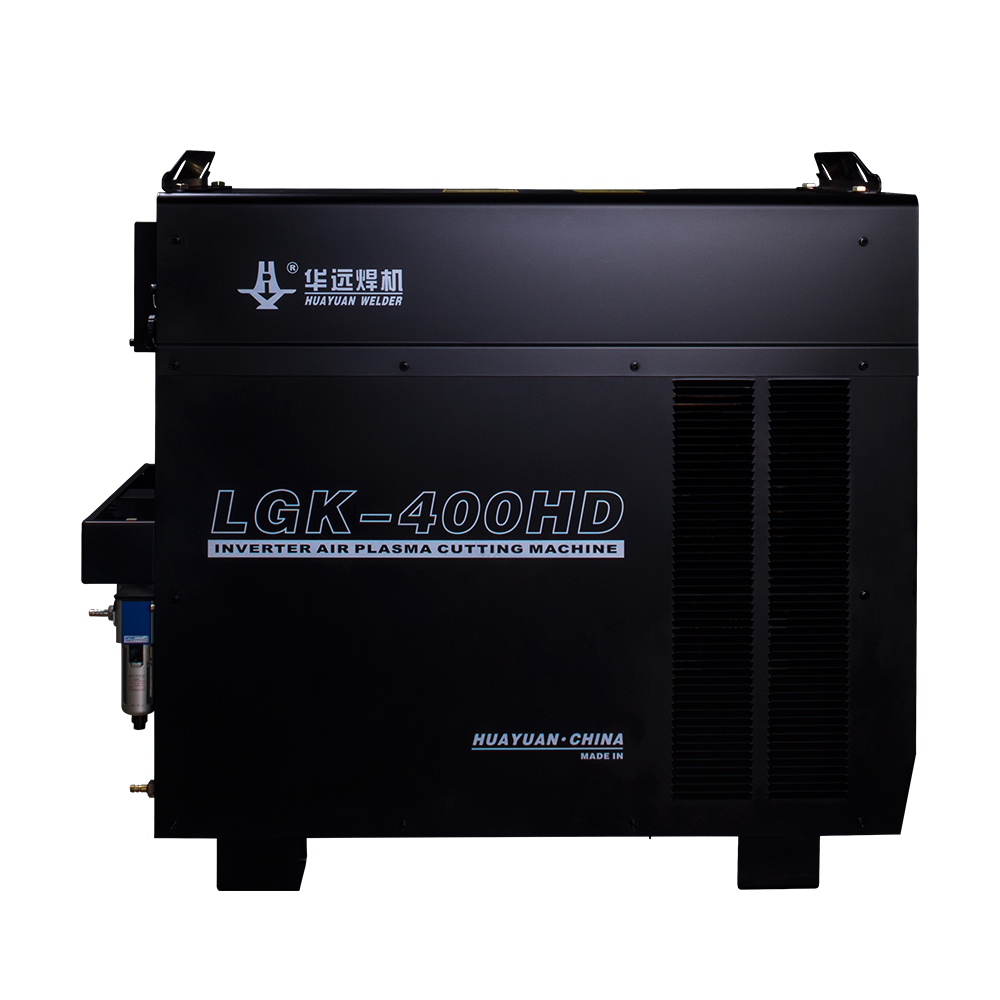

LGK-400HD

Rated input capability

21.2KVA

46.5KVA

70.4KVA

92.3KVA

Rated output current

120A

200A

300A

400A

Rated output voltage

128V

160V

200V

200V

Rated duty cycle

100%

100%

100%

100%

Current adjusting range

30-120A

40-200A

60-300A

60-400A

Max cutting capability

45mm

65mm

80mm

90mm

Quality Cutting

Capability

20mm

32mm

40mm

48mm

Piercing capability

(In Theory)

18mm

25mm

35mm

40mm

Plasma air

Compressed air

Compressed air

Compressed air

Compressed air

Torch cooling method

Air-cooling

Water-cooling

Water-cooling

Water-cooling

Dimension(L*W*H)

675*320*605mm

863*385*800mm

985*445*910mm

1015*445*910mm

Adopted nc cutting torch

YIKUAI

YIKUAI

Net Weight

46Kg

86Kg

129Kg

148Kg
