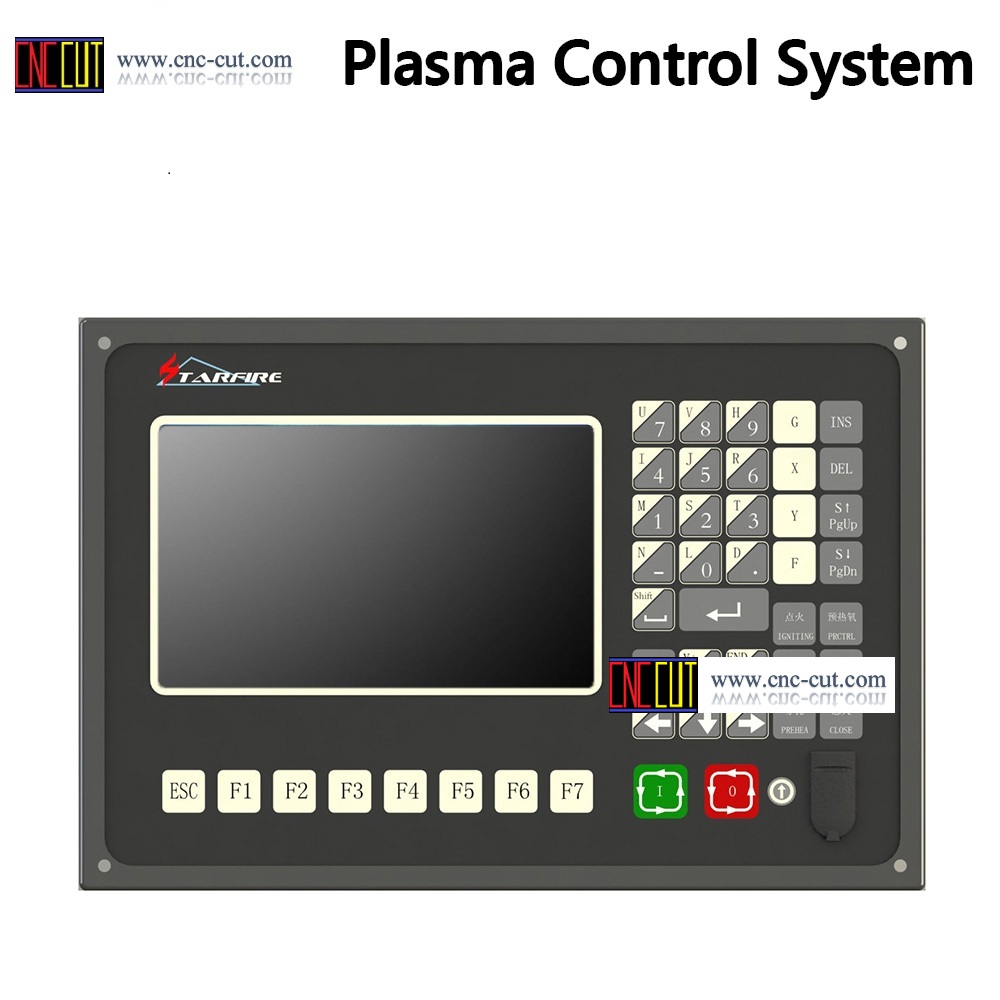

CNC System SF-2100

CNC System SF-2100

CNC System SF-2100

Model SH/SF-2012/2100S CNC System for Cutting is designed to work with Oxyfuel and or plasma cutting in metal working

CNC System
SF-2100S
CNC System SF-2100    CNC System SF-2100


System Functions

1.  Model SF-2100 Series SF-2100 Series / SF-2100S /SF-2012AH-QG /SF-2100C etc CNC System for Cutting is designed to work with Oxyfuel plasma in metal working.
2.  High reliability as well as good resistance to plasma disturbance, lightning and surge.
3.  Applied Oxyfuel plasma cutting technology, able to perform corner speed control and height control
automatically;
4.  Kerf compensation, reasonability check and report for user's option;
5.  Breakpoint restoration, automatic power-back recovery and automatic breakpoint memory,
6.  Random section and piercing point selection,
7.  Extended piercing for thick plate and bridging feature for thin plate,
8.  Optional piercing position feature in mode of RETURN, SECTION(section selection) and
RESBREK(breakpoint restoration), very convenient for user control,
9.  Ready for transitional cutting operation at any moment,
10.  Special short line machining feature based on smooth travel, extensively applicable to metal blanking
as well as advertisement and ironwork fabrication, etc.
11.  Parts library of 24-type patterns, extensible and customizable, including the common machining parts,
12.  Compatible with many blanking software such as IBE(Germany), FASTCAM, etc.
13.  Operation menu in English, dynamic graphic display, 8-times zoom, free point automatic tracking, USB
disk program and timely software upgrade.

Technical specifications

  1. Processor: Industrial ARM7 CPU
  2. Display: 7" Color LCD
  3. Input/output: 7 channels of optical isolation input and 4 channels of optical isolation output
  4. Interlocked axles: 2 axles, extensible to 4 interlocked axles
  5. Maximum speed: <24m/min
  6. Pulse equivalency: variable, electronic gear numerator and optional denominator in the range from 1 to 65535
  7. Memory space: 16M-32M oversized memory capacity for user program and no restriction to machining program
  8. Machine case size: 300*200*85(mm)

Operation temperature: 0 to +55; storage temperature: -40 to +60
