Plasma Torch Height Controller

Plasma Torch Height Controller

Plasma Torch Height Controller

HYD torch height controller, compatiable with kinds of CNC plasma System, durable in Oxyfuel and or plasma metal working, suitable for gantry and table CNC machine structures.

THC
Auto height controller
Plasma Torch Height Controller    Plasma Torch Height Controller


HYD torch height controller, compatiable with kinds of CNC plasma System, durable in Oxyfuel and or plasma metal working, suitable for gantry and table CNC machine structures.

Features
Stand alone THC, works with almost any plasma cutter, sale over 2000 sets per year

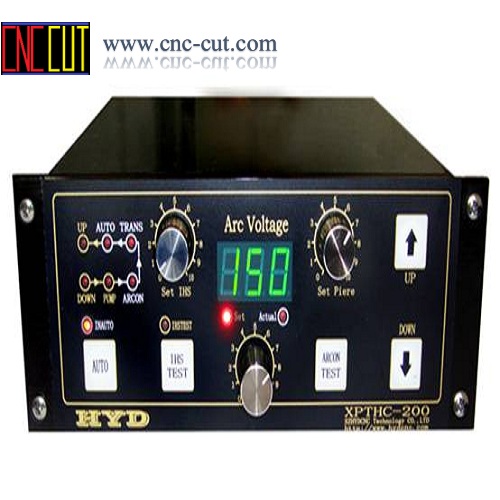

No need software, all functions can be easily operated on THC(as picture showed)
1. New operation pane, XPTHC-200, XPTHC-300, XPTHC-400
2. Support Dynamic pierce
3. Better anti-interference.

A. Auto Initial Height Sensing(IHS)
Torch Retaining Cap IHS and Proximity Switch IHS (NPN and PNP), Proximity Switch IHS is backup for Torch Retaining Cap IHS for cutting dirty/rusty workpiece, needing the Anti-Collision Fixture designed by HYD (optional ).

B.Torch Anti-Collision Function
We designed Touch-Up circuit for Anti-Collision Function. No matter it is on Auto Control Model or Manual Control Model, when torch head touches the workpiece, THC would automatically lift torch up to IHS height. So with XPTHC, even in Manual Control Model, user doesnt need to worry about torch head crashing.

C. Freeze Auto Height Control on Corner Signal
XPTHC can recognize Corner Signal from CNC and freeze Auto Control Model on receiving this signal, and we have a unique design to backup this function. We set 30V (adjustable) as Turning Point according to our years practice. When the Actual Arc Voltage is higher than Set Arc Voltage over 30V, THC Auto Control Mode freezes to avoid torch head diving, until it goes back to 30V range. This Over Voltage protection can avoid torch diving on voltage spikes (Corner Turning, Kerf Crossing) effectively.

D. Set Pierce Time
Set the Button (Set PIERE) to set Pierce Time.

E. Manual Operation
Many functions can be Manually operated on THC Operation Panel such as setting Auto/Manual, Up and Down, testing of IHS and Arc Start etc

F. Arc Voltage Divide
Isolation Voltage Divide detection, the Voltage Divide ratio is 100:1/50:1. And XPTHC-100 supports different HF plasma.

G. Dynamic pierc


Details
Full Name of Product Arc Voltage Torch Height controller
Product Model XPTHC Series
Dimensions L*W*H: 320*260*90mm
Supply voltage AC24V+/-10% 50Hz/60Hz
Lifting motor DC24V DC motor
Drive Method PWM (pulse width modulation )
Output current 1A~4A, the maximum is 6A
Output power 100W
Working temperature Torch height controller: -10~60??
Initial height sensing Torch Retaining Cap IHS and Proximity Switch IHS
Voltage Divide 100:1/50:1
Control Accuracy +/-1V~ +/-3V (adjustable by user)
Cutting Torch Lifting Speed 500 m/min~4000m/min(adjustable by user, over 4000m/min available.)
