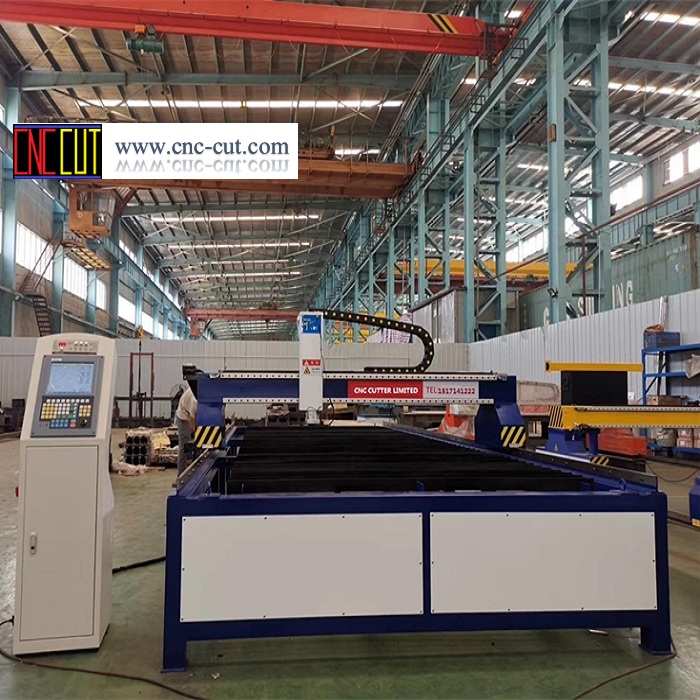

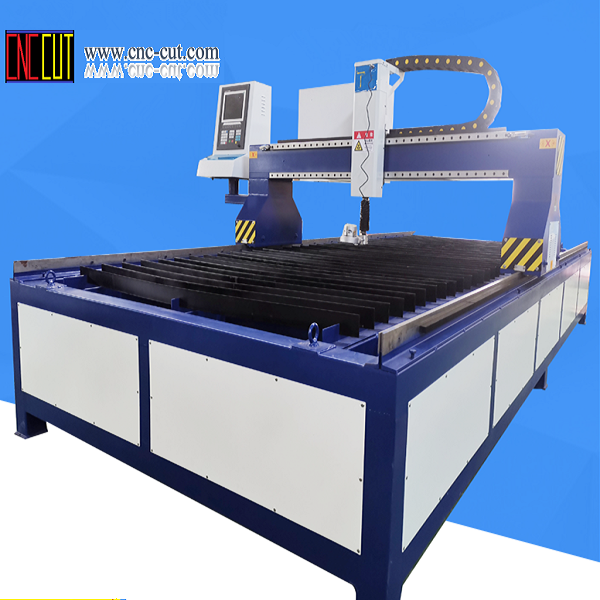

Table CNC Plasma Flame Cutter

Heavy plasma flame cnc cutting table CCL-BH by CNC cutter limited is the most complete CNC cutting machine. It provide the most free worrying (table making and commissionning) plasma and flame CNC cutting solution.

• Advanced Structure:

1. Box shape and dual driving gantry structure, release gravity and stress, ensure good condition in long life.
2. Reasonable size: 1.5m*2.5m or 1.5m*3.0m;
3. Overall structure, release you from basis and cutting platform manufacturing; exhausting and parts collection system environmental and convenient.
4. Taiwan linear guide+lift rail/Taiwan linear guide+G6 rack and pinion, Powerful engine+Planetary gear box; perfect running precise and stable transmission.
5. Ball screw torch height controller, accuracy and safte.
6. Enhanced and separated table, ensure heavy sheet carrying capacity; heavy structure no limited thin or thick, plasma or oxyfuelc cutting way.
7. Assembled delivery, free you from cutting platform manufacturing and commissionning.

• Powerful CNC System:

1. Break point & power off restoration.
2. Returning to reference point.
3. Kerf compensation.
4. Built-in library, Common figures, sustain professional nesting(common line etc).
5. 5.7'/10.4' Monitor, 64M-2000M memory for programs.
6. Corner speed automatically adapt.

• Parameter Outlook

1. Effective Cutting Width： 1.5m (can adjust)
2. Effective Cutting Length： 2.5m (can adjust)

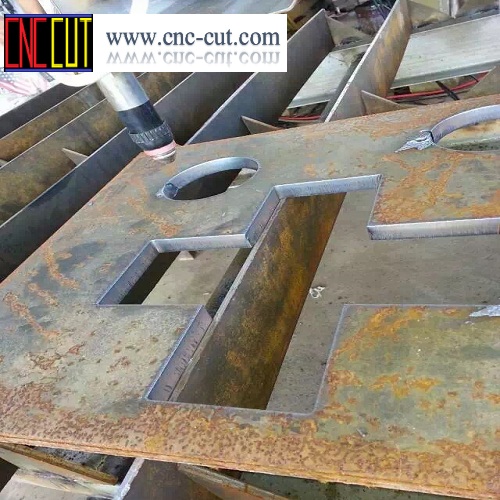

3. Cutting Mode： Plasma and/or flame cutting

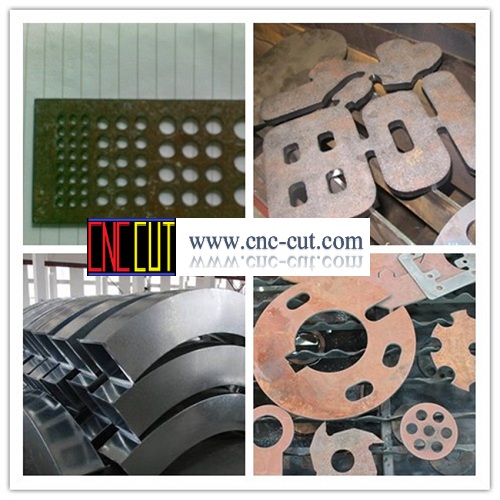

4. Cutting Material： Carbon Stainless Alloy steel, Aluminium, Zinc etc
5. Plasma Cutting Thickness： Depending on the NC plasma generator
6. Flame Cutting： Thickness 5-100mm
7. Cutting Speed： 0-6500mm per minute
8. Optional item： Extra plasma/flame cutting head/ Japan Panasonic servo/ NC plasma generator(Power Source) etc
