Plasma Cutting Table

Plasma Cutting Table

CCL-BL

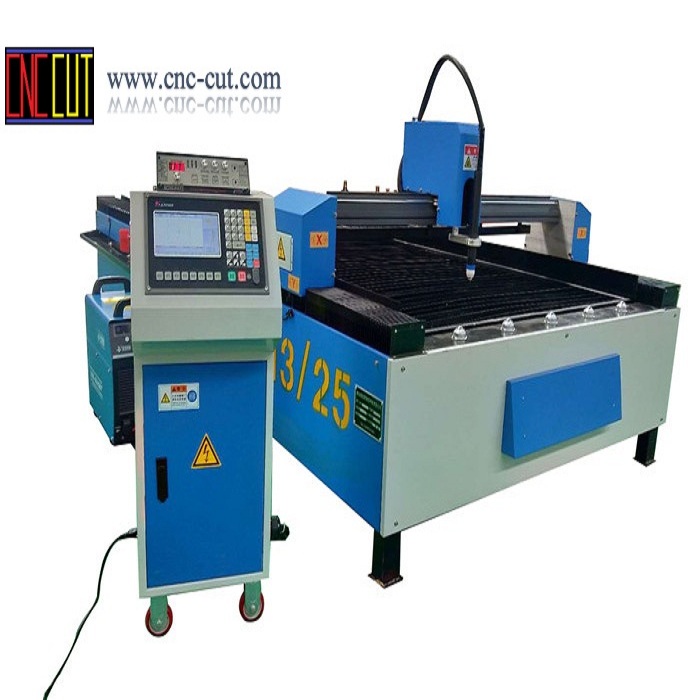

Table type CNC plasma cutting machine, stable, high precision; the most complete CNC plasma cutter, no need to make cutting platform by yourself.

Plasma CNC Cutting
With Cutting Table
Plasma Cutting Table    Plasma Cutting Table



Parameter:


Item

Unit

Parameter

1

Width

mm

1800(Customized available)

2

length

mm

3500(Customized available)

3

Effective cutting width

mm

1500

4

Effective cutting length

mm

3000

6

THC travel distance

mm

120

7

Cutting Speed

mm/min

0-7000

8

Empty moving speed

mm/min

0-12000

9

Plasma cutting thickness

mm

0.1-65mm Mild steel, stainless steel, Aluminium, copper etc

Advantage:

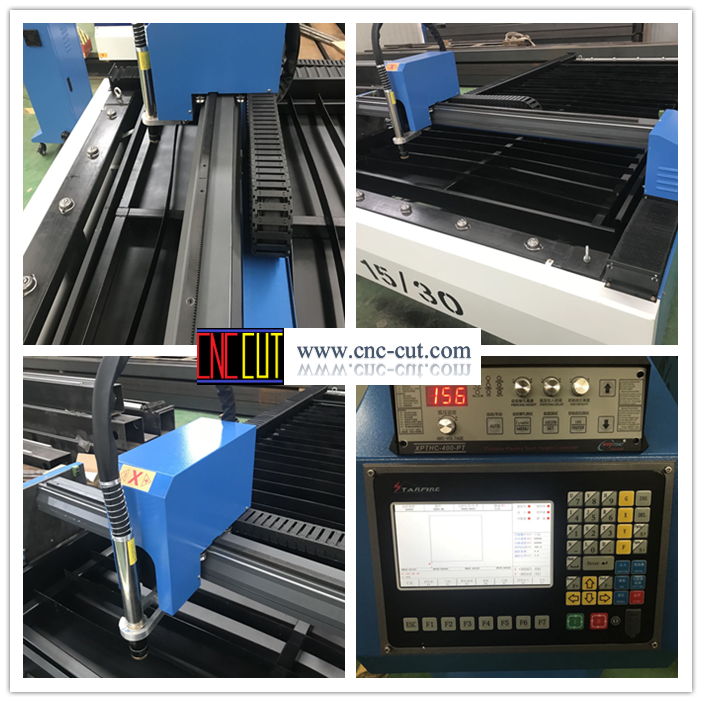

  1. Machine structure: Frame is thick-walled square tube overall welding, artificial aging bed, strong non-deformation, good rigidity.
  2. Track Dimensions: The longitudinal guide rail uses T rail linear guide, two rail side mounted longitudinal rack, like the gantry structure of the output gear to achieve the bilateral drive.
  3. Electronic control system: Control system is domestic well-known brands. The system adopts the modular structure, the wiring is simple, reasonable, standard, convenient maintenance, large number of use of scale integrated circuits, small size, stable performance and other advantages. The control circuit uses the professional shielding line, effective shielding interference; operation is stable and reliable
  4. Reducer mechanism: The use of domestic first-line brand reducer, can guarantee the good quality;
  5. Tooth rack: High-precision 7-stage fine grinding teeth.
  6. A most complete cnc plasma cutting machine, water cutting table etc all in, no table manufacturing at site.
